DC Solar Photovoltaic Aluminium Cables/SOLAR DC CABLE/H1Z2Z2-K cables
At HUADONG Cable you will find a reliable manufacturer and supplier for all cables required on floating PV installations. Our comprehensive range of solar cables covers from cable selection or design, project management with our technical expertise to logistics and after-sales service support.
1. UV RESISTANT DC SOLAR STRING CABLES
- VOLTAGE: 1,5 (1,8) kV DC · 1,0/1,0 kV AC.
Standard: EN 50618 / IEC 62930 / UTE C 32-502
Maximum conductor temperature: 90º (120ºC during 20000 h).
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC.
Conductor: Class 5 (flexible) tinned copper
Insulation: (LSHF) rubber
Outer sheath: (LSHF) rubber, red or black color.
Chemical performance:Resistance Chemical & Oil /Grease & mineral oils/Ozone resistant / UV Resistant
Water performance:AD8 submersion.
Optional: rodent-proof and termite-proof.
Installation conditions:Open Air/Buried/ In conduit.
Applications: Solar PV installations.

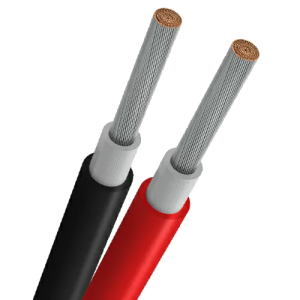

For solar tracking panels, H1Z2Z2-K cables have been designed with a rubber cross-linked insulation and outer sheath that makes the cable extremely flexible, as the panels will be moving along with the sun. These cables also meet the most stringent global standards for low-smoke halogen-free, fire-retardant, and low-corrosive gas emissions, are AD8, direct burial and TÜV certified according to EN 50618 and IEC 62930 Standards. They can also be rodent and termite proof cables (on request).
Application: H1Z2Z2-K is intended for use in photovol- taic power supply systems indoors and out- doors, in industrial and agriculture fields. Suitable for application in equipment with protective insulation (Class II), in explosion hazard areas and may be installed as fixed or freely suspended or free movable.
| H1Z2Z2-K cables | |||||
| Conductor Cross-section mm2 | Sheath colour | Outer diamater Min. mm | Outer diamater max.mm | Bending Radius Fixed mm | Weight Kg/km |
| 1×1,5 | Black | 4.4 | 5,0 | 15 | 40 |
| 1×2,5 | Black | 4.8 | 5.4 | 17 | 50 |
| 1×4 | Black, Blue, Red | 5.3 | 5.9 | 18 | 70 |
| 1×6 | Black, Blue, Red | 5.8 | 6.4 | 20 | 80 |
| 1×10 | Black, Blue, Red | 7,0 | 7.6 | 23 | 130 |
| 1×16 | Black | 9,0 | 9.8 | 30 | 200 |
| 1×25 | Black | 10.4 | 11.2 | 34 | 290 |
| 1×35 | Black | 11.7 | 12.5 | 50 | 400 |
| 1×50 | Black | 13.5 | 14.5 | 58 | 550 |
| 1×70 | Black | 15.5 | 16.5 | 66 | 750 |
| 1×95 | Black | 17.7 | 18.7 | 75 | 970 |
| 1×120 | Black | 19.2 | 20.4 | 82 | 1220 |
| 1×150 | Black | 21.4 | 22.6 | 91 | 1510 |
| 1×185 | Black | 23.7 | 25.1 | 101 | 1850 |
| 1×240 | Black | 27.1 | 28.5 | 114 | 2400 |
S3Z2Z2-K cables (1,8/3 kV AC)
Application:(S3Z2Z2-K) Halogen-free single core cables, sheathed, for junction boxes and inverters, with improved fire performance, increased heat resistance and suitable for direct burial.Intended for use in photovoltaic power supply systems, at nominal voltage rate of 1,8/3kV AC, as interconnection between central inverter and transformer station.
- Construction:
- > Finely stranded tinned copper
- > Class 5 acc. to IEC 60228
- Insulation:
- > Halogen-free
- > Heat resistant
- > Cross-linked rubber compound
- > Acc. to DIN VDE 0250-606
- Outer sheath:
- > Halogen-free cross-linked
- > Heat resistant
- > Cross-linked rubber compound
- > Acc. to DIN VDE 0250-606
- > Black and meter marked
- > UV-resistant
- Technical data
- > Rated voltage: 1,8/3 kV AC
- > Max. operating voltage AC: 2,1/3,6 kV
- > Max. operating voltage DC: 2,7/5,4 kV
- > AC test voltage: 6,5 kV (5.min)
| S3Z2Z2-K cables | |||||
| Conductor cross section mm | Conductor diameter max. mm | Outer diameter min.mm | Outer diameter max.mm | Bending radius fixed min.mm | Weight Kg/km |
| 1×25 | 6.3 | 13.2 | 14.4 | 87 | 380 |
| 1×35 | 7.4 | 14.3 | 15.5 | 93 | 470 |
| 1×50 | 8.9 | 15.6 | 17.1 | 103 | 640 |
| 1×70 | 10.6 | 17.1 | 19.1 | 115 | 820 |
| 1×95 | 12.1 | 19.4 | 21.4 | 129 | 1060 |
| 1×120 | 14.2 | 21.5 | 23.5 | 141 | 1320 |
| 1×150 | 15.8 | 23.1 | 25.1 | 151 | 1590 |
| 1×185 | 17.4 | 25.1 | 27.1 | 163 | 1910 |
| 1×240 | 20.2 | 28 | 30 | 180 | 2450 |
| 1×300 | 22.9 | 31 | 34 | 204 | 3030 |

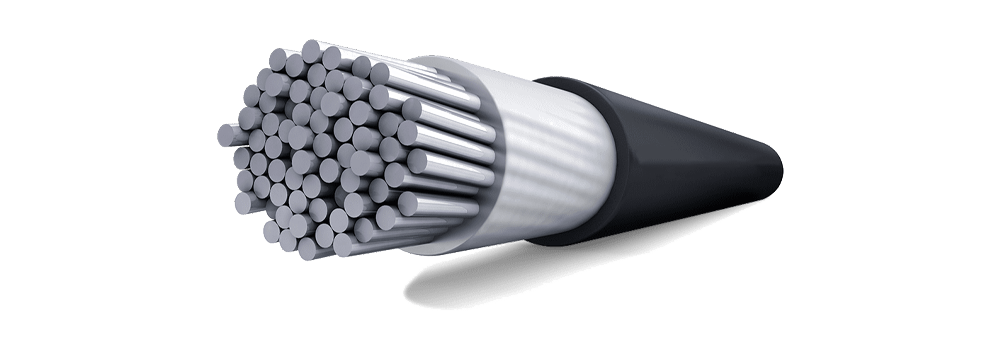

2.DC Solar Photovoltaic Aluminium Cables for Solar System panel
- Construction:
- Conductor: Aluminium, class 2 based on EN 60228 and IEC 60228.
- Insulation: Cross-linked polyethylene (XLPE) according to IEC 60502-1. Natural color.
- Outer sheath: Special flexible UV resistant PVC, type ST2 according to IEC 60502-1. Black color.
- Application: DC Aluminium 1500 PV cable is suitable for all types of underground and open air solar installations. This cable is recommended for connections between string boxes and photovoltaic inverters in large scale rooftops or ground farms.
3. HIGH-PERFORMANCE MEDIUM VOLTAGE CABLES
To connect the PV installation to substations and the power grid , HUADONG CABLE can provide a complete range of high-performance Medium Voltage cables. MV cables can include sealing elements in the screen, which prevent the longitudinal propagation of moisture in the event of outer sheath perforation.

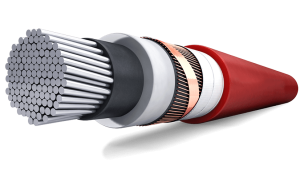

Aluminium or Copper Medium Voltage cable, XLPE insulation, halogen free
- Construction:
- Conductor: Aluminium or copper conductor
- Internal semiconductor: thermosetting semiconductor material.
- Insulation: XLPE
- External semiconductor: thermosetting and strippable semiconductor
- Metallic screen: copper wires and copper tape
- Longitudinal sealing
- Hygroscopic tape completely covering the screen (cable type –OL and -2OL).
- Outer sheath: External sheath of halogen-free polyolefin, red colour.
4. CABLES FOR AUXILIARY INSTALLATIONS IN SOLAR FARMS
HUADONG CABLE also has a wide range of best in class performance cables for auxiliary installations in solar farms, such as earthing cables for panel structures, AC power connection and fiber optic.

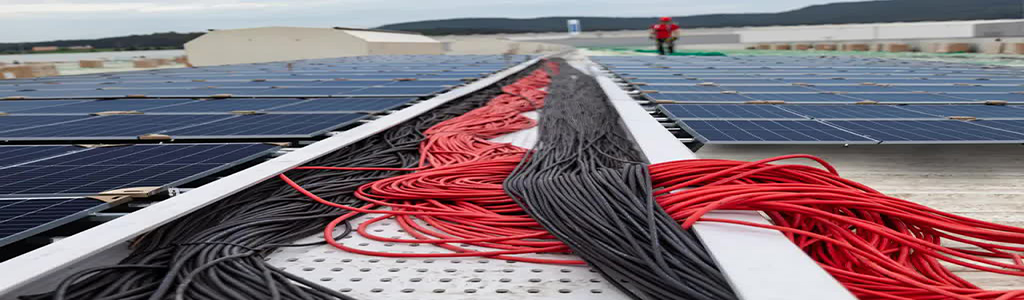

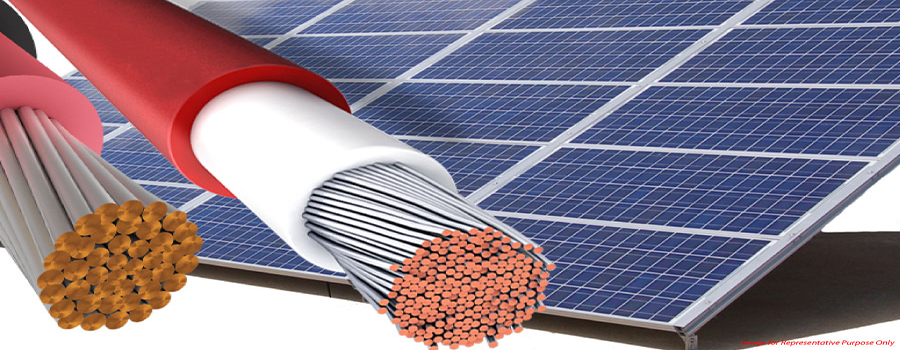

Pv cable Application Scenario
