Spiral Cable is a straight wire cable twisted by one or several groups of insulated wires. The spiral state is completed on the metal core rod, and then it is cooled and cooled after 30 minutes to 120 minutes of heat processing and shaping in the drying room. There are air cooling and water cooling. Spiral Cable is stretchable in a spiral state (the time is determined by the temperature and the sheath material).

Spiral Cable

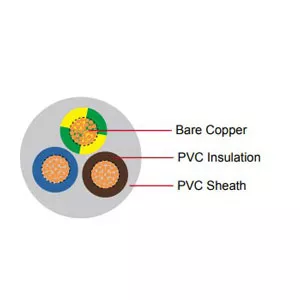

PVC Spiral Cables

PVC Spiral Cables
  • Conductor: bare copper conductors according to DIN VDE 0295 and IEC 60228 class 5
  • Conductor sizes: 0.5mm2 to 1.5mm2, 2 to 5 cores
  • Core Insulation: PVC core insulation
  • Core Color Code: according to VDE 0293 or DIN 47100
  • sheath: PVC outer sheath
  • sheath color: black, white or grey
  • Temperature Rating: -5°C to +70°C
  • Test voltage: 2000 V

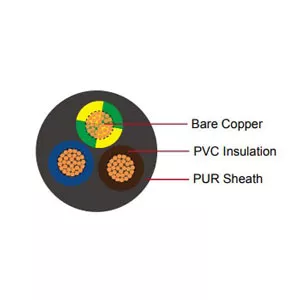

PUR Spiral Cable

PUR Spiral Cable
  • Conductor: stranded bare copper conductors according to VDE 0295 class 5
  • Cores twisted
  • Core Insulation: PVC core insulation
  • Core Color Code: according to VDE0293 or DIN 47100
  • sheath: PUR outer sheath
  • sheath color: black (other colors and types are available on request)
  • Temperature Rating: -5°C to +80°C
  • Test voltage: 2000 V, for type H07BQ-F 2500V

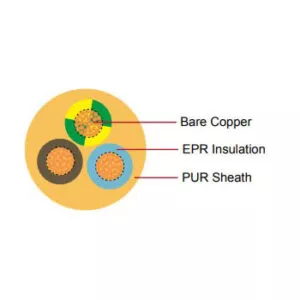

EPR/PUR Spiral Cable

EPR/PUR Spiral Cable
  • Conductor: stranded bare copper conductors according to VDE 0295 class 5
  • Cores twisted
  • Core Insulation: EPR core insulation
  • Core Color Code: according to VDE0293 or DIN 47100
  • sheath: PUR outer sheath
  • sheath color: orange (other colors and types are available on request)
  • Temperature Rating: -25°C to +80°C
  • Elasticity ratio: EPR/PUR black approx 1 : 5
  • Test voltage: H05BQ-F 2000 V, for type H07BQ-F 2500V

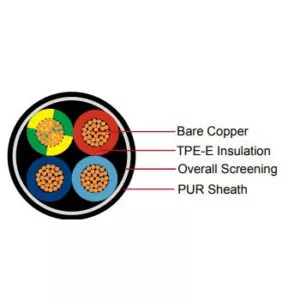

PUR Shielded Spiral Cable

PUR Shielded Spiral Cable
  • Conductor: stranded bare copper conductors according to DIN VDE 0295 and IEC 60228 cl. 5
  • Cores twisted
  • Core Insulation: TPE-E core insulation
  • Core Color Code: according to VDE 0293 or DIN 47100
  • sheath: PUR outer sheath
  • sheath color: black (other colors and types are available on request)
  • Temperature Rating: -25°C to +70°C
  • Elasticity ratio: TPE/PUR black approx 1 : 4
  • Test voltage: 2000 V

Spiral Cable Specification

PVC spiral cable Pur spiral cable Pur shielded spiral cable TPU spiral cable
Elastic elongation 1:03 1:04 1:04 01:03.5
voltage 300/500 300/500 300/500 300/750
working temperature -5~+70 -25~+80 -25~+80 -25~+80
Number of cores (customizable) 2,3,5 2,3,4,5,7,12,18 2,4,5,6,7,8,12,25 2,3,4,5,7,8,12
Nominal cross section of core mm 2 (customizable) 0.75,1.5 0.75,1.0,1.5,2.5 0.14,0.25,0.5 0.5,0.75,1.0,1.5,2.5
Screw closure length (WL) mm 200~2800 200~3000 200~1500 500~2500
Tensile range mm 400~5600 800~12000 900~4500 1750~8750
Color of outer sheath Black, white Black, white, orange black bla
