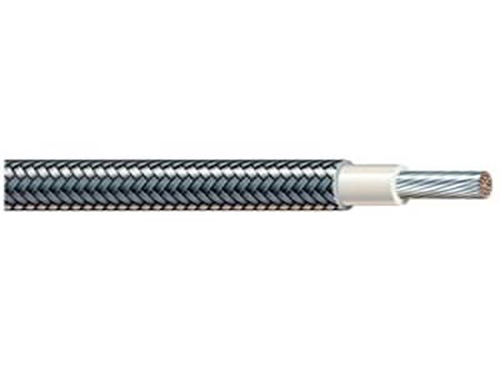

SRML Silicone Rubber Motor Lead Wire
- Certification: AIEE/IEEE
- Temperature Rating: 200°C
- Voltage Rating: 600V
- Conductor: Tinned Copper
- Insulation: Silicone Rubber
Features
- Very Flexible
- Moisture & Temperature Resistant
- Easy to Strip
Typical Applications
- Motors
- Transformers
- Appliances
- Lighting Fixtures
- Power Supplies
| AWG | STRAND | Silicone (MILS) |
BRAID (MILS) |
NOM O.D. (inch) |
WEIGHT (lbs./ 1000ft) |
|---|---|---|---|---|---|
| 16 | 26 | 30 | 5 | .13 | 16 |
| 14 | 41 | 30 | 5 | .15 | 22 |
| 12 | 65 | 30 | 5 | .17 | 32 |
| 10 | 105 | 45 | 5 | .23 | 54 |
| 8 | 133 | 60 | 5 | .31 | 90 |
| 6 | 133 | 60 | 5 | .33 | 120 |
| 4 | 133 | 60 | 5 | .38 | 160 |
| 2 | 133 | 60 | 5 | .42 | 240 |
| 1 | 259 | 80 | 5 | .56 | 355 |
| 1/0 | 259 | 80 | 7 | .58 | 390 |
| 2/0 | 259 | 80 | 7 | .61 | 490 |
| 3/0 | 259 | 80 | 7 | .67 | 600 |
| 4/0 | 259 | 80 | 7 | .77 | 800 |
NOTE: SF2, SFF2 and SRML are similar. Please call to consult.
