TYPE ACIC Armoured Fieldbus/Profibus PA, 300/600V

Fieldbus is the Process Industries digital replacement for analog 4-20mA transmission of process variables. Depending mainly on the current requirement of each device, up to 32 sensors and actuators are possible on a Fieldbus link with a maximum transmission distance of 1900m.

Get a Quote Now

VOLTAGE

300 / 600 V

PRODUCT CONSTRUCTION

• Insulation:
• XLPE (RW90 rated)rated: 90°C wet / 105°C dry
• Jacket:
• FR PVC outer orange jacket (standard for Fieldbus) rated: 90°C to -40°C
• FR PVC outer purple jacket (standard for Profibus) rated: 90°C to -40°C
• Black with integral orange stripe (optional)
• Blue for Intrinsically Safe applications
• Shielding (foil-free edge):
• ISOS
• Armour:
• Aluminum Interlocked Armour (AIA) (standard)
• Steel Interlocked Armour (SIA) (optional)
• Available in:
• Custom insulation / jacket colours
• LSZH jacket

CERTIFICATIONS/COMPLIANCES

• Foundation Fieldbus Spec. FF-844, Type H1
• IEEE 383/1202 (70,000 BTU / hr), Vertical Flame Test rated
• XLPE (RW90 rated), 90°C wet / 105°C dry
• UV sunlight resistant SUN RES (all colours)
• Direct burial rated
• -40°C cold bend / impact rated
• HL Rated for use in hazardous locations:
• Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
• Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
• Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
• HL-BCD gas groups rated

COLOUR CODING

Blue and orange conductors (standard)

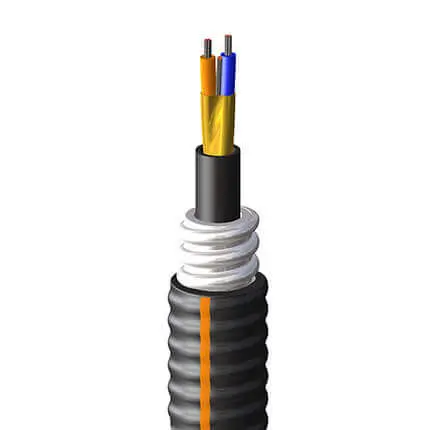

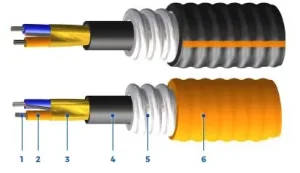

Properties

• 1. Stranded Tin-coated Copper Pairs
• 2. XLPE (RW90 Rated) Insulated Pairs (standard)
• 3. Individual Aluminum/Mylar Shield with Drain Wire Over Each Pair
• 4. FR PVC Inner Protective Jacket
• 5. Aluminum Interlocked Armour (AIA)
• 6. FR PVC Outer Protective Jacket
