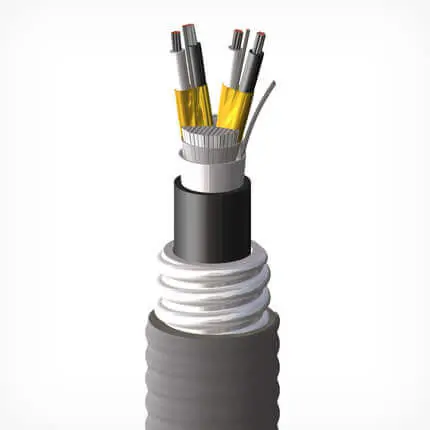

TYPE ACIC Armoured Instrumentation, 300V

Armoured Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to convert analogue or digital signals. Type ACIC Instrumentation cables can be installed in raceways, cable trays, direct burial applications and in outdoor exposed industrial applications.

VOLTAGE

300 V Optional: 600, 1000 V

PRODUCT CONSTRUCTION

Insulation:
FR XLPE (RW90 rated) rated: 90°C wet / 105°C dry
PVC (optional)
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
FR LAG PVC (AG14 rated) outer grey jacket rated: 90°C to -40°C
Available in:
Copper taper or braided shield
Custom insulation / jacket colours
Composite construction
Ribbed inner-jacketed core for vertical/mineshaft applications

CERTIFICATIONS/COMPLIANCES

IEEE 383/ 1202 (70,000 BTU / hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet / 105°C dry
UV sunlight resistant SUN RES (all colours)
Direct burial rated
-40°C cold bend / impact rated
HL rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically safe circuits only)
Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
HL-BCD gas groups rated

COLOUR CODING

Pairs – Black, & white, number-coded with black ink printed on white conductor (standard)
Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)

Applications

Industrial
Petrochem/Pulp & Paper
Water/Waste Water Treatment

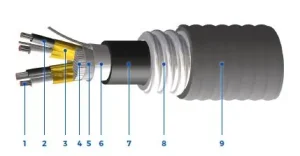

Properties

1. Stranded Bare Copper Conductors (Tin-coated Available)
2. XLPE (RW90 Rated) Insulated Conductors
3. Individually Shielded Pairs/Triads with Tin-coated Copper Drain Wire
4. Polypropylene Fillers
5. Polyester Separator Tape
6. Overall Aluminum/Mylar Shield with Tin-coated Copper Drain Wire
7. FR LAG PVC Inner Protective Jacket
8. Aluminum Interlocked Armour (AIA)
9. FR LAG PVC Outer Protective Jacket

PAIRS

Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
1	16	0.299 \| 7.6	0.539 \| 13.7	0.651 \| 16.5	168 \| 251	41 \| 19	11.7 \| 298
2	16	0.448 \| 11.4	0.688 \| 17.5	0.800 \| 20.3	259 \| 385	82 \| 37	14.4 \| 366
4	16	0.552 \| 14.0	0.792 \| 20.1	0.904 \| 23.0	343 \| 511	165 \| 75	16.3 \| 413
6	16	0.662 \| 16.8	0.902 \| 22.9	1.014 \| 25.8	438 \| 651	247 \| 112	18.3 \| 464
8	16	0.719 \| 18.3	0.959 \| 24.4	1.071 \| 27.2	508 \| 756	330 \| 150	19.3 \| 490
12	16	0.911 \| 23.2	1.151 \| 29.2	1.263 \| 32.1	751 \| 1117	494 \| 224	22.7 \| 578
16	16	1.016 \| 25.8	1.256 \| 31.9	1.368 \| 34.8	893 \| 1329	659 \| 299	24.6 \| 625
24	16	1.263 \| 32.1	1.503 \| 38.2	1.615 \| 41.0	1207 \| 1797	989 \| 449	29.1 \| 738
36	16	1.456 \| 37.0	1.696 \| 43.1	1.828 \| 46.4	1623 \| 2416	1483 \| 673	32.9 \| 836
1	18	0.275 \| 7.0	0.515 \| 13.1	0.627 \| 15.9	154 \| 229	26 \| 12	11.3 \| 287
2	18	0.409 \| 10.4	0.649 \| 16.5	0.761 \| 19.3	230 \| 342	52 \| 24	13.7 \| 348
4	18	0.478 \| 12.1	0.718 \| 18.2	0.830 \| 21.1	279 \| 416	104 \| 47	14.9 \| 379
6	18	0.602 \| 15.3	0.842 \| 21.4	0.954 \| 24.2	373 \| 555	156 \| 71	17.2 \| 436
8	18	0.653 \| 16.6	0.893 \| 22.7	1.005 \| 25.5	426 \| 633	208 \| 94	18.1 \| 459
12	18	0.795 \| 20.2	1.035 \| 26.3	1.147 \| 29.1	594 \| 884	312 \| 142	20.6 \| 524
16	18	0.920 \| 23.4	1.160 \| 29.5	1.272 \| 32.3	737 \| 1096	416 \| 189	22.9 \| 582
24	18	1.139 \| 28.9	1.379 \| 35.0	1.492 \| 37.9	983 \| 1463	624 \| 283	26.8 \| 682

TRIADS

Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12.0 \| 305
2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12 \| 305
2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
12	18	0.942 \| 23.9	1.182 \| 30.0	1.294 \| 32.9	769 \| 1144	468 \| 212	23.3 \| 592
16	18	1.050 \| 26.7	1.290 \| 32.8	1.402 \| 35.6	915 \| 1361	624 \| 283	25.2 \| 641
24	18	1.306 \| 33.2	1.546 \| 39.3	1.678 \| 42.6	1269 \| 1888	936 \| 425	30.2 \| 767
1	20	0.246 \| 6.3	0.486 \| 12.4	0.598 \| 15.2	144 \| 214	24 \| 11	10.8 \| 273
2	20	0.387 \| 9.8	0.627 \| 15.9	0.739 \| 18.8	218 \| 325	48 \| 22	13.3 \| 338
6	20	0.567 \| 14.4	0.807 \| 20.5	0.919 \| 23.3	353 \| 525	144 \| 65	16.5 \| 420
8	20	0.614 \| 15.6	0.854 \| 21.7	0.966 \| 24.5	403 \| 599	192 \| 87	17.4 \| 442
12	20	0.745 \| 18.9	0.985 \| 25.0	1.097 \| 27.9	518 \| 771	288 \| 131	19.8 \| 502
16	20	0.863 \| 21.9	1.103 \| 28.0	1.215 \| 30.9	694 \| 1032	384 \| 174	21.9 \| 556
24	20	1.066 \| 27.1	1.305 \| 33.2	1.418 \| 36.0	921 \| 1370	576 \| 261	25.5 \| 648

Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
1	16	0.299 \| 7.6	0.539 \| 13.7	0.651 \| 16.5	168 \| 251	41 \| 19	11.7 \| 298
2	16	0.448 \| 11.4	0.688 \| 17.5	0.800 \| 20.3	259 \| 385	82 \| 37	14.4 \| 366
4	16	0.552 \| 14.0	0.792 \| 20.1	0.904 \| 23.0	343 \| 511	165 \| 75	16.3 \| 413
6	16	0.662 \| 16.8	0.902 \| 22.9	1.014 \| 25.8	438 \| 651	247 \| 112	18.3 \| 464
8	16	0.719 \| 18.3	0.959 \| 24.4	1.071 \| 27.2	508 \| 756	330 \| 150	19.3 \| 490
12	16	0.911 \| 23.2	1.151 \| 29.2	1.263 \| 32.1	751 \| 1117	494 \| 224	22.7 \| 578
16	16	1.016 \| 25.8	1.256 \| 31.9	1.368 \| 34.8	893 \| 1329	659 \| 299	24.6 \| 625
24	16	1.263 \| 32.1	1.503 \| 38.2	1.615 \| 41.0	1207 \| 1797	989 \| 449	29.1 \| 738
36	16	1.456 \| 37.0	1.696 \| 43.1	1.828 \| 46.4	1623 \| 2416	1483 \| 673	32.9 \| 836
1	18	0.275 \| 7.0	0.515 \| 13.1	0.627 \| 15.9	154 \| 229	26 \| 12	11.3 \| 287
2	18	0.409 \| 10.4	0.649 \| 16.5	0.761 \| 19.3	230 \| 342	52 \| 24	13.7 \| 348
4	18	0.478 \| 12.1	0.718 \| 18.2	0.830 \| 21.1	279 \| 416	104 \| 47	14.9 \| 379
6	18	0.602 \| 15.3	0.842 \| 21.4	0.954 \| 24.2	373 \| 555	156 \| 71	17.2 \| 436
8	18	0.653 \| 16.6	0.893 \| 22.7	1.005 \| 25.5	426 \| 633	208 \| 94	18.1 \| 459
12	18	0.795 \| 20.2	1.035 \| 26.3	1.147 \| 29.1	594 \| 884	312 \| 142	20.6 \| 524
16	18	0.920 \| 23.4	1.160 \| 29.5	1.272 \| 32.3	737 \| 1096	416 \| 189	22.9 \| 582
24	18	1.139 \| 28.9	1.379 \| 35.0	1.492 \| 37.9	983 \| 1463	624 \| 283	26.8 \| 682

Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12.0 \| 305
2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12 \| 305
2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
12	18	0.942 \| 23.9	1.182 \| 30.0	1.294 \| 32.9	769 \| 1144	468 \| 212	23.3 \| 592
16	18	1.050 \| 26.7	1.290 \| 32.8	1.402 \| 35.6	915 \| 1361	624 \| 283	25.2 \| 641
24	18	1.306 \| 33.2	1.546 \| 39.3	1.678 \| 42.6	1269 \| 1888	936 \| 425	30.2 \| 767
1	20	0.246 \| 6.3	0.486 \| 12.4	0.598 \| 15.2	144 \| 214	24 \| 11	10.8 \| 273
2	20	0.387 \| 9.8	0.627 \| 15.9	0.739 \| 18.8	218 \| 325	48 \| 22	13.3 \| 338
6	20	0.567 \| 14.4	0.807 \| 20.5	0.919 \| 23.3	353 \| 525	144 \| 65	16.5 \| 420
8	20	0.614 \| 15.6	0.854 \| 21.7	0.966 \| 24.5	403 \| 599	192 \| 87	17.4 \| 442
12	20	0.745 \| 18.9	0.985 \| 25.0	1.097 \| 27.9	518 \| 771	288 \| 131	19.8 \| 502
16	20	0.863 \| 21.9	1.103 \| 28.0	1.215 \| 30.9	694 \| 1032	384 \| 174	21.9 \| 556
24	20	1.066 \| 27.1	1.305 \| 33.2	1.418 \| 36.0	921 \| 1370	576 \| 261	25.5 \| 648
