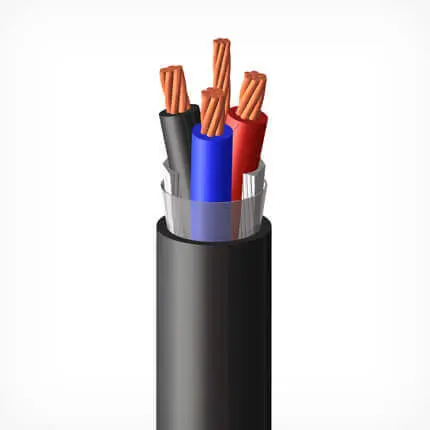

TYPE CIC RW90 TC Tray Control, Multi-Conductor, 600V

Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.

VOLTAGE

600 V, Optional: 300, 1000, 2000 V

PRODUCT CONSTRUCTION

Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding (optional):
Aluminum/mylar film
Copper tape, helical or corrugated
Tin-coated copper braid
Jacket:
FR PVC outer black jacket rated: 90°C to -40°C
Available in:
Custom insulation / jacket colours
Composite constructions

CERTIFICATION/COMPLIANCES

IEEE 383/1202 (70,000 BTU / hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet / 105°C dry
UV sunlight resistant “SUN RES” (all colours)
Direct burial rated
-40°C cold bend / impact rated
Rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
Zone 2 (Class I, Division 2)
Zone 22 (Class II & III, Division 2)

COLOUR CODING

2C Black & white
3C Black, red & blue
4C Black, red, blue & white
5C or greater – Black, number-coded with white ink

Applications

Energy
Industrial
Industrial Construction/Automation
Petrochem/Pulp & Paper
Utility

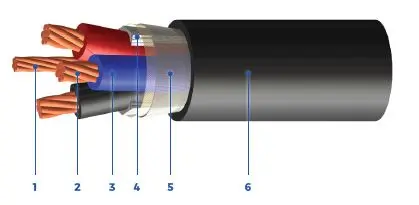

Properties

1. Bonding Conductor
2. Stranded Bare (ASTM B8) Annealed Copper Conductors
3. XLPE (RW90 Rated) Insulated Conductors
4. Polypropylene Fillers
5. Polyester Separator Tape
6. FR PVC Outer Protective Jacket

LSZH-Type-CIC-TC-Tray-Power-Multi-conductor-1000-V

Number of Conductors	Conductor Size	Ground Wire Size	Nominal Diameter Overall Cable	Cable Weight	Ampacity*	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius(Pull)
	AWG	AWG	in. \| mm	lbs/1000ft \| kg\|km	30°C ambient	lb \| kg	in. \| mm
2	14	14	0.372 \| 9.5	82 \| 122	25	66 \| 30	3.3 \| 85
3	14	14	0.403 \| 10.2	100 \| 149	25	99 \| 45	3.6 \| 92
4	14	14	0.436 \| 11.1	122 \| 182	20	132 \| 60	3.9 \| 100
5	14	14	0.465 \| 11.8	140 \| 208	20	165 \| 75	4.2 \| 106
6	14	14	0.505 \| 12.8	163 \| 243	20	197 \| 90	4.5 \| 115
7	14	14	0.575 \| 14.6	202 \| 300	17.5	230 \| 104	5.2 \| 131
8	14	14	0.616 \| 15.7	227 \| 338	17.5	263 \| 119	5.5 \| 141
10	14	14	0.668 \| 17.0	265 \| 394	17.5	329 \| 149	6.0 \| 153
12	14	14	0.688 \| 17.5	300 \| 446	17.5	395 \| 179	6.2 \| 157
14	14	14	0.722 \| 18.4	341 \| 508	17.5	461 \| 209	6.5 \| 165
15	14	14	0.741 \| 18.8	361 \| 537	17.5	494 \| 224	6.7 \| 169
20	14	14	0.841 \| 21.4	462 \| 688	17.5	658 \| 298	7.6 \| 192
25	14	14	0.974 \| 24.7	599 \| 891	15	823 \| 373	8.8 \| 223
30	14	14	1.028 \| 26.1	690 \| 1027	15	987 \| 448	9.3 \| 235
40	14	14	1.147 \| 29.1	889 \| 1324	15	1316 \| 597	10.3 \| 262
50	14	14	1.272 \| 32.3	1082 \| 1609	12.5	1645 \| 746	11.4 \| 291
2	12	14	0.408 \| 10.4	104 \| 154	20	104 \| 47	3.7 \| 93
3	12	14	0.443 \| 11.3	132 \| 196	20	157 \| 71	4.0 \| 101
4	12	14	0.480 \| 12.2	160 \| 239	16	209 \| 95	4.3 \| 110
5	12	14	0.514 \| 13.1	192 \| 285	16	261 \| 118	4.6 \| 117
6	12	14	0.589 \| 15.0	240 \| 358	16	313 \| 142	5.3 \| 135
7	12	14	0.634 \| 16.1	275 \| 410	14	365 \| 166	5.7 \| 145
8	12	14	0.681 \| 17.3	304 \| 453	14	418 \| 189	6.1 \| 156
10	12	14	0.740 \| 18.8	359 \| 535	14	522 \| 237	6.7 \| 169
12	12	14	0.763 \| 19.4	413 \| 615	14	626 \| 284	6.9 \| 174
14	12	14	0.802 \| 20.4	469 \| 698	14	731 \| 331	7.2 \| 183
15	12	14	0.823 \| 20.9	498 \| 741	14	783 \| 355	7.4 \| 188
20	12	14	0.976 \| 24.8	677 \| 1008	14	1044 \| 474	8.8 \| 223
25	12	14	1.082 \| 27.5	830 \| 1235	12	1305 \| 592	9.7 \| 247
30	12	14	1.144 \| 29.1	962 \| 1432	12	1566 \| 710	10.3 \| 261
40	12	14	1.278 \| 32.5	1251 \| 1861	12	2088 \| 947	11.5 \| 292
40	12	14	1.278 \| 32.5	1251 \| 1861	12	2088 \| 947	11.5 \| 292
50	12	14	1.420 \| 36.1	1530 \| 2277	10	2610 \| 1184	12.8 \| 325
2	10	12	0.458 \| 11.6	144 \| 215	30	166 \| 75	4.1 \| 105
3	10	12	0.498 \| 12.7	184 \| 275	30	249 \| 113	4.5 \| 114
4	10	12	0.572 \| 14.5	245 \| 365	24	332 \| 151	5.2 \| 131
5	10	12	0.611 \| 15.5	288 \| 429	24	415 \| 188	5.5 \| 140
6	10	12	0.664 \| 16.9	338 \| 503	24	498 \| 226	6.0 \| 152
7	10	12	0.717 \| 18.2	388 \| 578	21	581 \| 264	6.5 \| 164
8	10	12	0.771 \| 19.6	433 \| 645	21	664 \| 301	6.9 \| 176
10	10	12	0.840 \| 21.3	514 \| 764	21	830 \| 376	7.6 \| 192
12	10	12	0.906 \| 23.0	624 \| 928	21	996 \| 452	8.2 \| 207
14	10	12	0.952 \| 24.2	712 \| 1060	21	1162 \| 527	8.6 \| 218
15	10	12	0.977 \| 24.8	755 \| 1124	21	1245 \| 565	8.8 \| 223
25	10	12	1.232 \| 31.3	1197 \| 1781	18	2075 \| 941	11.1 \| 282
30	10	12	1.304 \| 33.1	1398 \| 2080	18	2490 \| 1129	11.7 \| 298
40	10	12	1.461 \| 37.1	1824 \| 2714	18	3320 \| 1506	13.1 \| 334
50	10	12	1.626 \| 41.3	2238 \| 3330	15	4150 \| 1882	14.6 \| 372
