TYPE CIC TC Tray Thermocouple Extension, 300V

Thermocouple Extension cables offer advantages in cost and mechanical properties when used for connections between thermocouples and instruments.

Get a Quote Now

Voltage

300 V, Optional: 600V

Product Construction

• Insulation:
• XLPE (RW90 rated) rated: 90°C wet/105°C dry
• Shielding (foil-free edge):
• ISOS (standard)
• OS (optional)
• Jacket:
• FR PVC yellow dependent on requested thermocouple alloy rated: 90°C to -40°C
• Available in:
• Composite constructions
• Custom insulation/jacket colours
• Extension cables for type E, J, K, N, R, S and T thermocouple alloys

Certifications/Compliances

• IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
• XLPE (RW90 rated), 90°C wet/ 105°C dry
• UV sunlight resistant “SUN RES” (all colours)
• Direct burial rated
• -40°C cold bend/impact rated
• Rated for use in hazardous locations:
• Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
• Zone 2 (Div 2)
• TC-BCD gas groups rated

Colour Coding

• Type EX:        (+) Purple     (-) Red     Purple jacket
• Type JX:         (+) White      (-) Red     Black jacket
• Type KX:        (+) Yellow     (-) Red     Yellow jacket
• Type NX:        (+) Orange   (-) Red     Orange jacket
• Type RX/SX:  (+) Black      (-) Red     Green jacket
• Type TX:        (+) Blue        (-) Red     Blue jacket

Applications

• Generation – Renewables – Wind
• Transit
• Water/Waste Water Treatment
• Shipboard
• Generation
• Communication Power & Control
• Generation – Nuclear
• Power Distribution
• Industrial Construction/Automation
• Civil Construction Projects
• Power Distribution – LV
• Generation – Renewables
• Petrochem/Pulp & Paper
• Utility
• Commercial Construction Projects
• Generation – Renewables – Geo Thermal
• Generation – Renewables – Solar
• Mining

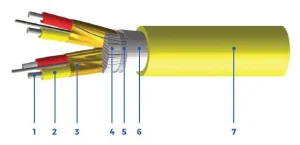

Properties

• 1. Thermocouple Alloys
• 2. Insulated Thermocouple Alloy Wires
• 3. Individual Aluminum/Mylar Shielded Pairs with Tin-coated Copper Drain Wire
• 4. Polypropylene Fillers
• 5. Polyester Separator Tape
• 6. Overall Aluminum/Mylar Shield with Tin-coated Copper Drain Wire
• 7. FR PVC Outer Protective Jacket
