TYPE RW90 CIC TC Tray VFD, Multi-Conductor, 1000V

Shawflex VFD cables are the preferred power cables for AC Drives. These cables are primarily used between Pulse Width Modulation (PWM) inverters and AC motors. ShawFlex VFD Tray cables are suitable for use in raceways, including ventilated, non-ventilated, indoor/outdoor and ladder-type cable trays in wet/dry locations and are applicable in Industrial and Processing facilities.

Voltage

1000 V, Optional: 600 / 2000 V

Product Construction

Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding:
Helically applied copper tape shield
Jacket:
FR PVC outer black or yellow jacket (standard) rated: 90°C to -40°C
Available in:
Custom insulation/jacket colours
LSZH Jacket

Certifications/Compliances

IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
UV sunlight resistant “SUN RES” (all colours)
Direct burial rated
– 40°C cold bend/impact rated
Rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
Zone 2 (Class I, Division 2)
Zone 22 (Class II & III, Division 2)

Colour Coding

3C Black, # coded

Applications

Water/Waste Water Treatment
Industrial Construction/Automation
Industrial
Petrochem/Pulp & Paper
Energy

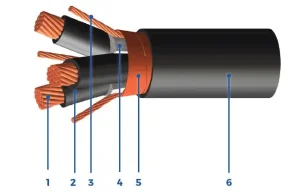

Properties

1. Stranded Bare (ASTM B8) Annealed Copper Conductors
2. XLPE (RW90 Rated) Insulated Conductors
3. Tri-sectional Grounding Conductors
4. Polypropylene Fillers
5. Helically Applied Bare / Tinned Copper Tape Shield
6. FR PVC Outer Protective Jacket

Type-RW90-CIC-TC-Tray-VFD-Multi-Conductor-1000V

Number of Conductors	Conductor Size	Ground Wire Size	Nominal Diameter Overall cable	Cable Weight	Ampacity	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG or kcmil	AWG	in. \| mm	lb\|1000ft \| kg\|km	30°C ambient	lb \| kg	in. \| mm
3	12	3 x 18	0.503 \| 12.8	178 \| 266	30	157 \| 71	9.1 \| 230
3	10	3 x 16	0.595 \| 15.1	276 \| 410	40	249 \| 113	10.7 \| 272
3	8	3 x 14	0.657 \| 16.7	377 \| 561	55	397 \| 180	11.8 \| 300
3	6	3 x 12	0.801 \| 20.4	561 \| 834	75	629 \| 285	14.4 \| 366
3	4	3 x 12	0.942 \| 24.0	788 \| 1173	95	1002 \| 454	17.0 \| 431
3	2	3 x 10	1.067 \| 27.1	1111 \| 1653	130	1593 \| 723	19.2 \| 488
3	1	3 x 10	1.237 \| 31.4	1394 \| 2075	145	2009 \| 911	22.3 \| 566
3	1/0	3 x 10	1.323 \| 33.6	1643 \| 2446	170	2534 \| 1150	23.8 \| 605
3	2/0	3 x 10	1.415 \| 36.0	1965 \| 2925	195	3194 \| 1449	25.5 \| 647
3	3/0	3 x 8	1.525 \| 38.7	2409 \| 3584	225	4007 \| 1818	27.5 \| 697
3	4/0	3 x 8	1.645 \| 41.8	2896 \| 4310	260	5078 \| 2304	29.6 \| 752
3	250	3 x 8	1.847 \| 46.9	3379 \| 5028	290	6000 \| 2722	33.3 \| 845
3	350	3 x 6	2.069 \| 52.6	4669 \| 6949	350	8400 \| 3810	37.2 \| 946
3	500	3 x 6	2.344 \| 59.5	6305 \| 9383	430	12000 \| 5443	42.2 \| 1072
3	750	3 x 6	2.729 \| 69.3	8638 \| 12855	535	18000 \| 8165	49.1 \| 1248

Number of Conductors	Conductor Size	Ground Wire Size	Nominal Diameter Overall cable	Cable Weight	Ampacity	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG or kcmil	AWG	in. \| mm	lb\|1000ft \| kg\|km	30°C ambient	lb \| kg	in. \| mm
3	12	3 x 18	0.503 \| 12.8	178 \| 266	30	157 \| 71	9.1 \| 230
3	10	3 x 16	0.595 \| 15.1	276 \| 410	40	249 \| 113	10.7 \| 272
3	8	3 x 14	0.657 \| 16.7	377 \| 561	55	397 \| 180	11.8 \| 300
3	6	3 x 12	0.801 \| 20.4	561 \| 834	75	629 \| 285	14.4 \| 366
3	4	3 x 12	0.942 \| 24.0	788 \| 1173	95	1002 \| 454	17.0 \| 431
3	2	3 x 10	1.067 \| 27.1	1111 \| 1653	130	1593 \| 723	19.2 \| 488
3	1	3 x 10	1.237 \| 31.4	1394 \| 2075	145	2009 \| 911	22.3 \| 566
3	1/0	3 x 10	1.323 \| 33.6	1643 \| 2446	170	2534 \| 1150	23.8 \| 605
3	2/0	3 x 10	1.415 \| 36.0	1965 \| 2925	195	3194 \| 1449	25.5 \| 647
3	3/0	3 x 8	1.525 \| 38.7	2409 \| 3584	225	4007 \| 1818	27.5 \| 697
3	4/0	3 x 8	1.645 \| 41.8	2896 \| 4310	260	5078 \| 2304	29.6 \| 752
3	250	3 x 8	1.847 \| 46.9	3379 \| 5028	290	6000 \| 2722	33.3 \| 845
3	350	3 x 6	2.069 \| 52.6	4669 \| 6949	350	8400 \| 3810	37.2 \| 946
3	500	3 x 6	2.344 \| 59.5	6305 \| 9383	430	12000 \| 5443	42.2 \| 1072
3	750	3 x 6	2.729 \| 69.3	8638 \| 12855	535	18000 \| 8165	49.1 \| 1248
