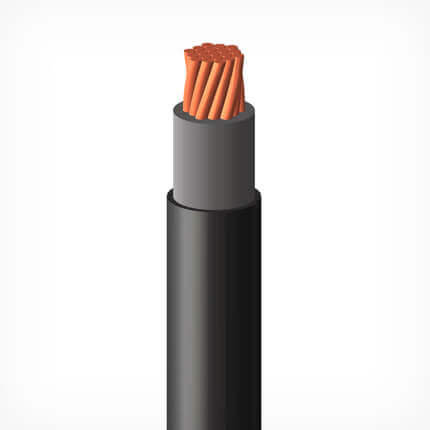

TYPE RW90 TC Tray Power, Single Conductor, 1000V

Tray Power cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.

Get a Quote Now

VOLTAGE

1000 V, Optional: 600, 2000 V

PRODUCT CONSTRUCTION

• Insulation:
• XLPE (RW90 rated) rated: 90°C wet/dry
• Jacket:
• FR PVC outer black jacket rated: 90°C to -40°C
• Available in:
• Custom insulation/jacket colors
• Aluminum conductors

CERTIFICATION/COMPLIANCES

• IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
• XLPE (RW90 rated), 90°C wet/ dry
• UV sunlight resistant “SUN RES” (all colours)
• Oil resistant “PR I” and “OIL RES”
• Direct burial rated
• -40°C cold bend/impact rated
• Rated for use in hazardous locations:
• Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
• Zone 2 (Class I, Division 2)
• Zone 22 (Class II & III, Division 2)

Colour Coding

Black conductor (standard)

Applications

• Generation – Renewables – Wind
• Transit
• Water/Waste Water Treatment
• Shipboard
• Generation – Traditional Power
• Generation
• Communication Power & Control
• Generation – Nuclear
• Power Distribution
• Industrial Construction/Automation
• Civil Construction Projects
• Power Distribution – LV
• Industrial
• Generation – Renewables
• Communications Cable Splice & Protection
• Petrochem/Pulp & Paper
• Utility
• Commercial Construction Projects
• Generation – Renewables – Geo Thermal
• Generation – Renewables – Solar
• Aerospace Defense
• Mining

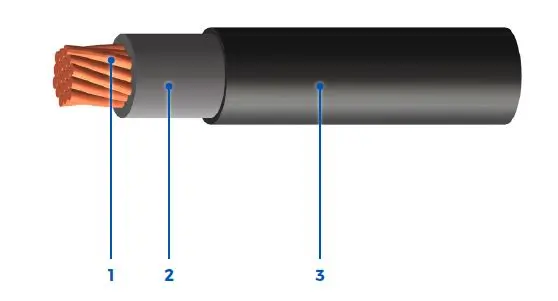

Properties

• 1. Stranded Bare (ASTM B8) Annealed Copper Conductors
• 2. XLPE (RW90 Rated) Insulated Conductor
• 3. FR PVC Outer Protective Jacket
