Type SV, SVO, SVT, SVTO, SVTOO Flexible Cord UL62 Certified

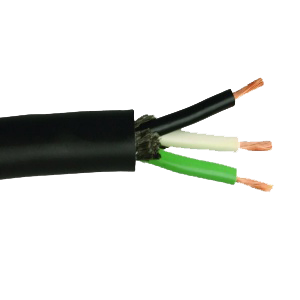

Type-SVO-from-Huadong-Cable-Group-02

300V Type SV, SVO FLEXIBLE PORTABLE CORD

Construction: Extra flexible stranded copper conductors with separator and color coded insulation. Cabled with filler and separator.
Insulation: 1 Type SV — EPDM or PVC; 2 Type SVO — Color coded EPDM
Jacket: 1 Type SV — Rubber; 2 Type SVO — Neoprene
Application: used in portable tools, equipment, appliances, and motors.
Compliances: UL Listed / CSA Certified

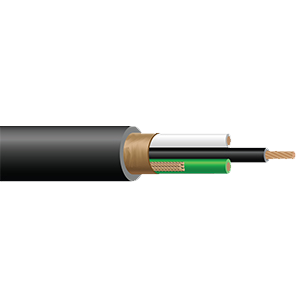

Type-SVT-cord-from-Huadong-Cable-Group-01

300V Type SVT, SVTO, SVTOO FLEXIBLE PORTABLE CORD

Insulation material: PVC
Jacket material: PVC
Operating Temperature: -40°C to 105°C
Meets Requirements: UL and CSA
Application: For Portable hand tools, washing machines, medical equipment and office machines, etc.
The above cords can all be filled with yarn, paper and wrapped braids.

Type SV, SVO Parameter List

Type	No of Cond.	Size AWG	Stranding	Insuliation Thick.		Jacket Thickness		O.D		Ampacity	Approx Woight
Type	No of Cond.	Size AWG	Stranding	inches	mm	inches	mm	inches	mm		Ibs/1000ft	KGs/KM
SV	2	18	41	0.016	0.4	0.03	0.762	0.245	6.223	10	39	58
SV	3	18	41	0.016	0.4	0.03	0.762	0.245	6.477	10	46	68
SVO	2	18	41	0.015	0.38	0.03	0.762	0.225	5.72	10	34	50
SVO	0	18	41	0.015	0.38	0.03	0.762	0.225	5.97	10	40	60

Type SVT, SVTO, SVTOO Parameter List

Type	Cores	Conductor		Insulation	Outer sheath	Approx. overall Dia	Max conductor resistance at 20℃
	Cores	AWM	No/Dia	Thickness	Thickness	Approx. overall Dia	Bare	Tinned
	No	No	No/mm	mm	mm	mm	Ω/km
SVT SVTO SVTOO	2	18	41/0.16	0.38	0.76	5.8	21.8	23.4
		17	52/0.16	0.38	0.76	6	17.3	18.5
		16	65/0.16	0.38	0.76	6.4	13.7	14.7
	3	18	41/0.16	0.38	0.76	6.1	21.8	23.4
		17	52/0.16	0.76	0.76	6.4	17.3	18.5
		16	65/0.16	0.76	0.76	6.8	13.7	14.7
