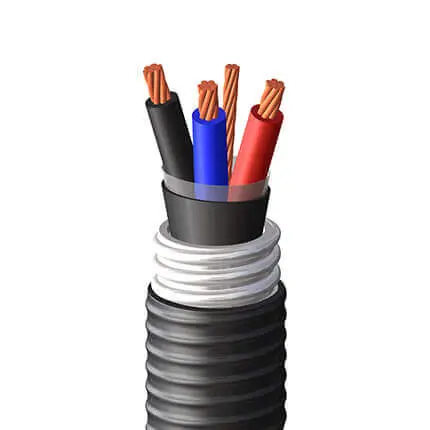

TYPE TECK 90 Armoured Control, Multi-Conductor, 1000V

Armoured control cable is used for operation of control automation equipment. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.

VOLTAGE

1000 V, Optional: 600 V

PRODUCT CONSTRUCTION

Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner/outer black jacket rated: 90°C to -40°C
Available in:
Variable Frequency Drive (VFD)
Ribbed inner-jacketed core for vertical/mineshaft applications
Custom insulation/jacket colours
Composite constructions

CERTIFICATION/COMPLIANCES

IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet/dry
UV sunlight resistant “SUN RES” (all colours)
Direct burial rated
-40°C cold bend/impact rated
HL rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)

COLOUR CODING

2C – Black & white
3C – Black, red & blue
4C – Black, red, blue & white
5C and greater – Black , number-coded with white ink

Applications

Generation – Renewables – Wind
Transit
Water/Waste Water Treatment
Shipboard
Generation – Traditional Power
Generation
Communication Power & Control
Generation – Nuclear
Power Distribution
Industrial Construction/Automation
Civil Construction Projects
Power Distribution – LV
Industrial
Generation – Renewables
Communications Cable Splice & Protection
Petrochem/Pulp & Paper
Utility
Commercial Construction Projects
Generation – Renewables – Geo Thermal
Generation – Renewables – Solar
Mining

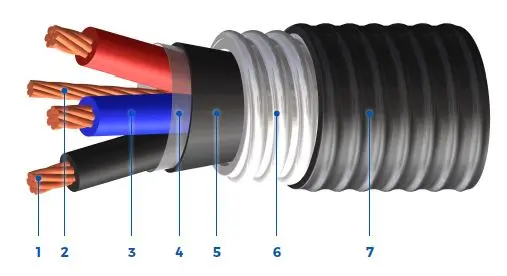

Properties

1. Stranded Bare (ASTM B8) Annealed Copper Conductors
2. Bonding Conductor
3. XLPE (RW90 Rated) Insulated Conductors
4. Polyester Separator Tape
5. FR LAG PVC Inner Protective Jacket
6. Aluminum Interlocked Armour (AIA)
7. FR LAG PVC Outer Protective Jacket

TYPE-TECK-90-Armoured-Control-Multi-Conductor-600-V

Number of Conductors	Conductor Size	Bonding Conductor Size	Nominal Diameter			Cable Weight	Ampacity*	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	30°C ambient	lb \| kg	in. \| mm
2	14	14	0.432 \| 11.0	0.672 \| 17.1	0.764 \| 19.4	231 \| 344	25	66 \| 30	13.8 \| 349
3	14	14	0.470 \| 11.9	0.710 \| 18.0	0.802 \| 20.4	262 \| 391	25	99 \| 45	14.4 \| 366
4	14	14	0.510 \| 13.0	0.750 \| 19.1	0.842 \| 21.4	295 \| 440	20	132 \| 60	15.2 \| 385
5	14	14	0.576 \| 14.6	0.816 \| 20.7	0.908 \| 23.1	351 \| 523	20	165 \| 75	16.3 \| 415
6	14	14	0.625 \| 15.9	0.865 \| 22.0	0.957 \| 24.3	390 \| 581	20	197 \| 90	17.2 \| 438
7	14	14	0.674 \| 17.1	0.914 \| 23.2	1.006 \| 25.6	430 \| 640	17.5	230 \| 104	18.1 \| 460
8	14	14	0.724 \| 18.4	0.964 \| 24.5	1.056 \| 26.8	472 \| 702	17.5	263 \| 119	19.0 \| 483
10	14	14	0.788 \| 20.0	1.028 \| 26.1	1.120 \| 28.5	573 \| 853	17.5	329 \| 149	20.2 \| 512
12	14	14	0.813 \| 20.6	1.053 \| 26.7	1.145 \| 29.1	620 \| 923	17.5	395 \| 179	20.6 \| 523
15	14	14	0.918 \| 23.3	1.158 \| 29.4	1.250 \| 31.7	749 \| 1115	17.5	494 \| 224	22.5 \| 571
20	14	14	1.040 \| 26.4	1.280 \| 32.5	1.372 \| 34.9	904 \| 1345	17.5	658 \| 298	24.7 \| 627
25	14	14	1.154 \| 29.3	1.394 \| 35.4	1.486 \| 37.7	1058 \| 1575	15	823 \| 373	26.7 \| 679
30	14	14	1.221 \| 31.0	1.461 \| 37.1	1.553 \| 39.4	1177 \| 1751	15	987 \| 448	28.0 \| 710
40	14	14	1.366 \| 34.7	1.606 \| 40.8	1.714 \| 43.5	1471 \| 2188	15	1316 \| 597	30.9 \| 784
50	14	14	1.519 \| 38.6	1.759 \| 44.7	1.867 \| 47.4	1731 \| 2577	12.5	1645 \| 746	33.6 \| 854
2	12	14	0.468 \| 11.9	0.708 \| 18.0	0.800 \| 20.3	260 \| 386	30	104 \| 47	14.4 \| 366
3	12	14	0.510 \| 13.0	0.750 \| 19.0	0.842 \| 21.4	302 \| 449	30	157 \| 71	15.2 \| 385
4	12	14	0.585 \| 14.9	0.825 \| 21.0	0.917 \| 23.3	368 \| 548	24	209 \| 95	16.5 \| 419
5	12	14	0.625 \| 15.9	0.865 \| 22.0	0.957 \| 24.3	412 \| 613	24	261 \| 118	17.2 \| 437
6	12	14	0.679 \| 17.3	0.919 \| 23.3	1.011 \| 25.7	462 \| 688	24	313 \| 142	18.2 \| 462
7	12	14	0.733 \| 18.6	0.973 \| 24.7	1.065 \| 27.1	514 \| 764	21	365 \| 166	19.2 \| 487
8	12	14	0.789 \| 20.1	1.029 \| 26.2	1.121 \| 28.5	612 \| 910	21	418 \| 189	20.2 \| 513
10	12	14	0.900 \| 22.9	1.140 \| 29.0	1.232 \| 31.3	735 \| 1094	21	522 \| 237	22.2 \| 563
12	12	14	0.927 \| 23.6	1.167 \| 29.7	1.259 \| 32.0	801 \| 1193	21	626 \| 284	22.7 \| 576
15	12	14	1.000 \| 25.4	1.240 \| 31.5	1.332 \| 33.8	919 \| 1368	21	783 \| 355	24.0 \| 609
20	12	14	1.135 \| 28.8	1.375 \| 34.9	1.467 \| 37.3	1121 \| 1669	21	1044 \| 474	26.4 \| 671
25	12	14	1.262 \| 32.1	1.502 \| 38.2	1.594 \| 40.5	1325 \| 1972	18	1305 \| 592	28.7 \| 729
30	12	14	1.336 \| 33.9	1.576 \| 40.0	1.684 \| 42.8	1517 \| 2257	18	1566 \| 710	30.3 \| 770
40	12	14	1.497 \| 38.0	1.737 \| 44.1	1.845 \| 46.9	1880 \| 2797	18	2088 \| 947	33.2 \| 844
50	12	14	1.667 \| 42.4	1.972 \| 50.1	2.080 \| 52.8	2325 \| 3460	15	2610 \| 1184	37.4 \| 951
2	10	12	0.518 \| 13.2	0.758 \| 19.3	0.850 \| 21.6	310 \| 462	40	166 \| 75	15.3 \| 389
3	10	12	0.595 \| 15.1	0.835 \| 21.2	0.927 \| 23.6	391 \| 581	40	249 \| 113	16.7 \| 424
4	10	12	0.647 \| 16.4	0.887 \| 22.5	0.979 \| 24.9	450 \| 670	32	332 \| 151	17.6 \| 448
5	10	12	0.692 \| 17.6	0.932 \| 23.7	1.024 \| 26.0	511 \| 760	32	415 \| 188	18.4 \| 468
6	10	12	0.754 \| 19.2	0.994 \| 25.3	1.086 \| 27.6	579 \| 862	32	498 \| 226	19.5 \| 497
7	10	12	0.816 \| 20.7	1.056 \| 26.8	1.148 \| 29.2	693 \| 1031	28	581 \| 264	20.7 \| 525
8	10	12	0.920 \| 23.4	1.160 \| 29.5	1.252 \| 31.8	812 \| 1209	28	664 \| 301	22.5 \| 572
10	10	12	1.000 \| 25.4	1.240 \| 31.5	1.332 \| 33.8	924 \| 1374	28	830 \| 376	24.0 \| 609
12	10	12	1.031 \| 26.2	1.271 \| 32.3	1.363 \| 34.6	1019 \| 1516	28	996 \| 452	24.5 \| 623
15	10	12	1.113 \| 28.3	1.353 \| 34.4	1.445 \| 36.7	1181 \| 1758	28	1245 \| 565	26.0 \| 661
20	10	12	1.268 \| 32.2	1.508 \| 38.3	1.600 \| 40.6	1460 \| 2173	28	1660 \| 753	28.8 \| 731
25	10	12	1.412 \| 35.9	1.652 \| 42.0	1.760 \| 44.7	1767 \| 2629	24	2075 \| 941	31.7 \| 805
30	10	12	1.496 \| 38.0	1.736 \| 44.1	1.844 \| 46.9	2004 \| 2983	24	2490 \| 1129	33.2 \| 843
40	10	12	1.680 \| 42.7	1.985 \| 50.4	2.093 \| 53.2	2606 \| 3878	24	3320 \| 1506	37.7 \| 957
50	10	12	1.933 \| 49.1	2.238 \| 56.9	2.346 \| 59.6	3241 \| 4823	20	4150 \| 1882	42.2 \| 1073
