TYPE TECK 90 Armoured Power, Single-Conductor, Unshielded, 5000V

Armoured power cable is used to supply power for lighting, drives, motors and pumps. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.

Get a Quote Now

VOLTAGE

5000 V

PRODUCT CONSTRUCTION

• Conductor Shield:
• Extruded, concentric, thermoset semiconducting material
• Insulation:
• XLPE (RW90 rated) rated: 90°C wet/105°C dry
• Bonding Conductor:
• Concentric serving of solid bare copper wires applied over the insulation
• Armour:
• Aluminum Interlocked Armour (AIA) (standard)
• Jacket:
• FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
• FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C
• Available in:
• Ribbed inner-jacketed core for vertical/mineshaft applications
• Custom insulation / jacket colours
• Aluminum conductors

Certifications/Compliances

• IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
• XLPE (RW90 rated), 90°C wet/dry
• UV sunlight resistant “SUN RES” (all colours)
• Direct burial rated
• -40°C cold bend/impact rated
• HL rated for use in hazardous locations:
• Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
• Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
• Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)

COLOUR CODING

Black conductor (standard)

Applications

• Water/Waste Water Treatment
• Industrial
• Petrochem/Pulp & Paper
• Mining

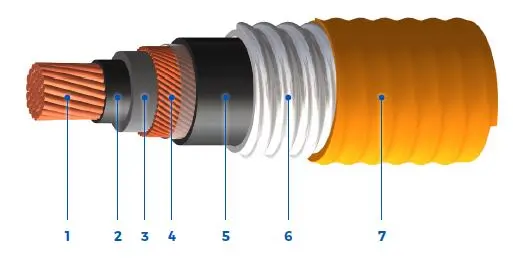

Properties

• 1. Stranded Bare (ASTM B8) Annealed Copper Conductor
• 2. Semiconducting Conductor Shield
• 3. XLPE (RW90 Rated) Insulated Conductor
• 4. Bonding Conductor, Copper Wire Served Helically
• 5. FR LAG PVC Inner Protective Jacket
• 6. Aluminum Interlocked Armour (AIA)
• 7. FR LAG PVC Outer Protective Jacket
