TYPE TECK 90 Armoured Vertical Mineshaft, Unshielded, 5000V

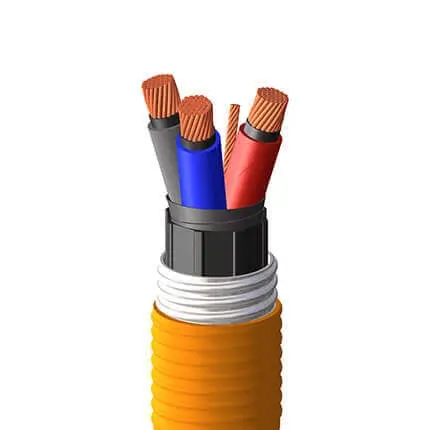

Vertical Mineshaft TECK 90 cables are designed for vertical applications to prevent cable core slippage and are suitable for use in mineshaft and for environments that require self-supporting lengths. Typically used in Mining, Utilities, Industrial and Commercial applications.

Get a Quote Now

Voltage

5000 V

Product Construction

• Conductor Shield:
• Extruded, concentric, thermoset semiconducting material
• Insulation:
• XLPE (RW90 rated) rated: 90°C wet/dry
• Armour:
• Steel Interlocked Armour (SIA) (standard)
• Aluminum Interlocked Armour (AIA) (optional)
• Jacket:
• FR LAG PVC (AG14 rated) inner ribbed black jacket rated: 90°C to -40°C
• FR LAG PVC (AG14 rated) outer black jacket rated: 90°C to -40°C
• Available in:
• Variable Frequency Drive (VFD)
• Custom insulation / jacket colours
• Composite constructions
• Aluminum conductors
• Single conductor

Certifications/Compliances

• IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
• XLPE (RW90 rated), 90°C wet/dry
• UV sunlight resistant “SUN RES” (all colours)
• Direct burial rated
• -40°C cold bend / impact rated
• HL rated for use in hazardous locations:
• Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
• Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)

Colour Coding

• 2C – Black & white
• 3C – Black, red & blue
• 4C – Black, red, blue & white
• 5C and greater – Black, number-coded with white ink

Applications

• Commercial Construction Projects
• Industrial
• Mining

Properties

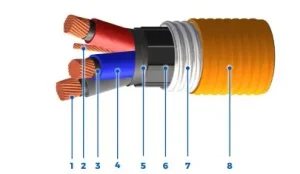

• 1. Stranded Bare (ASTM B8)
• Annealed Copper Conductors
• 2. Bonding Conductor
• 3. Semiconducting Conductor Shield
• 4. XLPE (RW90 Rated) Insulated Conductors
• 5. Cloth Backed Rubberized Separator Tape
• 6. FR LAG PVC Inner Inner Ribbed Jacket
• 7. Steel Interlocked Armour (SIA)
• 8. FR LAG PVC Outer Protective Jacket
