U-1000 R2V / U1000 RVFV / U1000 RO2V / U1000 AR2V Cables

They are low voltage fixed wiring in armoured and unarmoured variants.

R2V cable (also known as XV or RV cable) are rigid unarmoured power and control cables, whilst U-1000 RVFV cable (also known as XAV cable) are the armoured equivalent.

R2V XAV XV RV and RVFV Cable Application

They are used for the supply of electricity in a wide range of semi-industrial and industrial applications with a voltage rating of 600/1000V. This including lighting remote control and telecontrol installation systems, and other electrical devices. The U-1000 R2V cable can be fixed on cable trays, within conduits or to walls. The U-1000 RVFV is constructed with additional two layers of steel tape armouring and so can also be used outdoors and in direct burial installations or where additional protection against mechanical stresses is required.

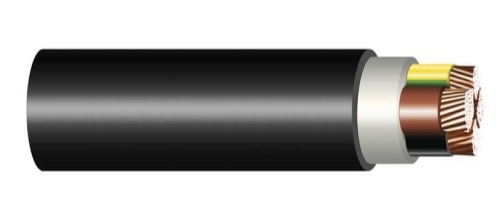

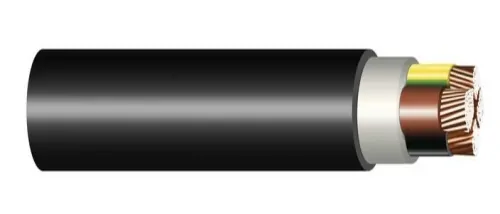

U1000 R2V/RO2V Copper Industrial Cable

U1000 R2V/RO2V

Rated voltage Uo/U
0.6/1Kv
Conductor
1.5mm2 to 4mm2: Class 1 solid copper core for S
6mm2 and over: Class 2 solid for S ≥ 6 mm².
Insulation
PR / XLPE
Sheathing
UV- and weather-resistant black PVC

U1000 R2V/RO2V Application

U1000 R2V cable for low-voltage industrial installations and connections.
Power supply or connection of fixed substations.
Installation in cable trays on shelves or other supports, and on building risers, either ducted or buried, with mechanical protection.

U1000 R2V Cable Specification

Reference	Cross-section (mm²)	Approx. outside diameter (mm)	Approx. mass (Kg/Km)	Permissible current in amperes (1)		Voltage drop V/A/Km cosØ=0.8
				Open air 30°C	In soil 20°C
1 round copper conductor Three-phase
R2V1.5	1 x 1.5	5.5	42	24	31	21
R2V2.5	1 x 2.5	5.8	53	33	41	13
R2V4	1 x 4	6.5	70	45	53	8.3
R2V6	1 x 6	7	94	58	66	5.5
R2V10	1 x 10	7.8	110	80	87	3.3
R2V16+	1 x 16	8.7	195	107	113	2.1
R0V25+	1 x 25	10.5	300	138	144	1.3
R0V35+	1 x 35	11.5	390	169	174	1
R0V50+	1 x 50	13	500	207	206	0.77
R0V70+	1 x 70	15	720	268	254	0.55
R0V95+	1 x 95	17	970	328	301	0.42
R0V120+	1 x 120	18.1	1200	382	343	0.35
R0V150+	1 x 150	20	1470	441	387	0.3
R0V185+	1 x 185	22.1	1830	506	434	0.26
R0V240+	1 x 240	25	2380	599	501	0.22
R0V300+	1 x 300	38	3000	693	565	0.19
R0V400	1 x 400	31.5	3880	825	662	1.17
R0V500	1 x 500	38.5	4860	946	749	0.15
R0V630	1 x 630	43	6265	1088	851	0.14
2 round copper conductors Single-phase
R2VB1.5+	2 x 1.5	8.1	100	26	37	25
R2VB2.5+	2 x 2.5	8.9	120	36	48	15
R2VB4+	2 x 4	10	170	49	63	9.6
R2VB6+	2 x 6	11.5	230	63	80	6.3
R2VB10+	2 x 10	13	330	86	104	3.8
R2VB16+	2 x 16	15	480	115	136	2.4
R0VB25+	2 x 25	18.5	750	149	173	1.6
R0VB35	2 x 35	20.5	950	185	208	1.2
3 round copper conductors Three-phase
R2VC1.5+	3G1.5	8.6	110	23	31	21
R2VC2.5+	3G2.5	9.5	150	31	41	13
R2VC4+	3G4	10.5	200	42	53	8.3
R2VC6+	3 x 6	12	290	54	66	5.5
R2VC10+	3 x10	14	425	75	87	3.2
R2VC16+	3 x16	16	640	100	113	2.1
3 round copper conductors Three-phase
R0VC25+	3 x 25	20	950	127	144	1.3
R0VC35+	3 x 35	22	1300	158	174	1
R0VC50+	3 x 50	25.5	1740	192	206	0.75
R0VC70+	3 x 70	30	2500	246	254	0.55
R0VC95+	3 x 95	33.5	3340	298	301	0.42
R0VC120	3 x120	37	4150	346	343	0.35
R0VC150	3 x 150	41.5	5140	395	387	0.3
R0VC185	3 x 185	46	6350	450	434	0.26
R0VC240	3 x 240	52.5	8240	538	501	0.22
3 conductors + neutral copper round Three-phase
R0VC2516	3×25+16	22	1200	127	144	1.3
R0VC3516	3×35+16	23	1500	158	174	1
R0VC5025	3×50+25	27	2000	192	206	0.75
R0VC5035+	3×50+35	27.2	2050	192	206	0.75
R0VC7035+	3×70+35	31.5	2700	246	254	0.55
R0VC7050+	3×70+50	32	3000	246	254	0.55
R0VC9550+	3×95+50	35.5	3800	298	301	0.42
R0VC12070+	3×120+70	39	4800	346	343	0.35
R0VC15070+	3×150+70	43.5	5700	395	387	0.3
R0VC18570	3×185+70	47.7	6900	450	434	0.26
R0VC18595	3×185+95	48.5	7200	450	434	0.26
R0VC24095	3×240+95	54	9000	538	501	0.22
R0VC240120	3×240+120	55	9300	538	501	0.22
4 round copper conductors Three-phase
R2VD1.5+	4G1.5	9.5	140	23	31	21
R2VD2.5+	4G2.5	10.5	190	31	41	13
R2VD4+	4G4	11.5	250	42	53	8.3
R2VD6+	4 x 6	13.5	360	54	66	5.5
R2VD10+	4 x 10	15.5	550	75	87	3.2
R2VD16+	4 x 16	17.5	800	100	113	2.1
R0VD25+	4 x 25	22	1250	127	144	1.3
R0VD35+	4 x 35	21	1650	158	174	1
R0VD50+	4 x 50	28	2200	192	206	0.75
R0VD70+	4 x 70	32.5	3200	246	254	0.55
R0VD95+	4 x 95	37	4250	298	301	0.42
R0VD120	4 x 120	41.5	5350	346	343	0.35
R0VD150	4 x 150	45	6450	395	387	0.3
R0VD185	4 x 185	51	8100	450	434	0.26
R0VD240	4 x 240	58	10500	538	501	0.22
5 round copper conductors Three-phase
R2VE1.5+	5G1.5	11	170	23	31	21
R2VE2.5+	5G2.5	12	230	31	41	13
R2VE4+	5G4	13	320	42	53	8.3
R2VE6+	5 x 6	15.5	450	54	66	5.5
R2VE10+	5 x 10	17	670	75	87	3.2
R2VE16+	5 x 16	20	1000	100	113	21
R2VE25	5 x 25	24.5	1540	127	144	1.3
R2VE35	5 x 35	28	2050	158	174	1

U1000 AR2V

Rated voltage Uo/U
0.6/1Kv
Conductor
Alu round core, shrink-wired class 2
Insulation
PR / XLPE
Sheathing
UV- and weather-resistant black PVC

U1000 AR2V Application

U1000 AR2V can be used for industrial low-voltage installations and connections.
Power supply or connection of fixed substations.
Installation in cable trays on shelves or other supports, and on building risers in ducts or underground with mechanical protection.

U1000 AR2V Cable Specification

Reference	Cross-section (mm²)	Approx. outside diameter (mm)	Approx. mass (Kg/Km)	Permissible current in amperes (1)		Voltage drop V/A/Km cosØ=0.8
Reference	Cross-section (mm²)	Approx. outside diameter (mm)	Approx. mass (Kg/Km)	Open air 30°C	In soil 20°C	Voltage drop V/A/Km cosØ=0.8
1 round copper conductor Three-phase
R2V1.5	1 x 1.5	5.5	42	24	31	21
R2V2.5	1 x 2.5	5.8	53	33	41	13
R2V4	1 x 4	6.5	70	45	53	8.3
R2V6	1 x 6	7	94	58	66	5.5
R2V10	1 x 10	7.8	110	80	87	3.3
R2V16+	1 x 16	8.7	195	107	113	2.1
R0V25+	1 x 25	10.5	300	138	144	1.3
R0V35+	1 x 35	11.5	390	169	174	1
R0V50+	1 x 50	13	500	207	206	0.77
R0V70+	1 x 70	15	720	268	254	0.55
R0V95+	1 x 95	17	970	328	301	0.42
R0V120+	1 x 120	18.1	1200	382	343	0.35
R0V150+	1 x 150	20	1470	441	387	0.3
R0V185+	1 x 185	22.1	1830	506	434	0.26
R0V240+	1 x 240	25	2380	599	501	0.22
R0V300+	1 x 300	38	3000	693	565	0.19
R0V400	1 x 400	31.5	3880	825	662	1.17
R0V500	1 x 500	38.5	4860	946	749	0.15
R0V630	1 x 630	43	6265	1088	851	0.14
2 round copper conductors Single-phase
R2VB1.5+	2 x 1.5	8.1	100	26	37	25
R2VB2.5+	2 x 2.5	8.9	120	36	48	15
R2VB4+	2 x 4	10	170	49	63	9.6
R2VB6+	2 x 6	11.5	230	63	80	6.3
R2VB10+	2 x 10	13	330	86	104	3.8
R2VB16+	2 x 16	15	480	115	136	2.4
R0VB25+	2 x 25	18.5	750	149	173	1.6
R0VB35	2 x 35	20.5	950	185	208	1.2
3 round copper conductors Three-phase
R2VC1.5+	3G1.5	8.6	110	23	31	21
R2VC2.5+	3G2.5	9.5	150	31	41	13
R2VC4+	3G4	10.5	200	42	53	8.3
R2VC6+	3 x 6	12	290	54	66	5.5
R2VC10+	3 x10	14	425	75	87	3.2
R2VC16+	3 x16	16	640	100	113	2.1
3 round copper conductors Three-phase
R0VC25+	3 x 25	20	950	127	144	1.3
R0VC35+	3 x 35	22	1300	158	174	1
R0VC50+	3 x 50	25.5	1740	192	206	0.75
R0VC70+	3 x 70	30	2500	246	254	0.55
R0VC95+	3 x 95	33.5	3340	298	301	0.42
R0VC120	3 x120	37	4150	346	343	0.35
R0VC150	3 x 150	41.5	5140	395	387	0.3
R0VC185	3 x 185	46	6350	450	434	0.26
R0VC240	3 x 240	52.5	8240	538	501	0.22
3 conductors + neutral copper round Three-phase
R0VC2516	3×25+16	22	1200	127	144	1.3
R0VC3516	3×35+16	23	1500	158	174	1
R0VC5025	3×50+25	27	2000	192	206	0.75
R0VC5035+	3×50+35	27.2	2050	192	206	0.75
R0VC7035+	3×70+35	31.5	2700	246	254	0.55
R0VC7050+	3×70+50	32	3000	246	254	0.55
R0VC9550+	3×95+50	35.5	3800	298	301	0.42
R0VC12070+	3×120+70	39	4800	346	343	0.35
R0VC15070+	3×150+70	43.5	5700	395	387	0.3
R0VC18570	3×185+70	47.7	6900	450	434	0.26
R0VC18595	3×185+95	48.5	7200	450	434	0.26
R0VC24095	3×240+95	54	9000	538	501	0.22
R0VC240120	3×240+120	55	9300	538	501	0.22
4 round copper conductors Three-phase
R2VD1.5+	4G1.5	9.5	140	23	31	21
R2VD2.5+	4G2.5	10.5	190	31	41	13
R2VD4+	4G4	11.5	250	42	53	8.3
R2VD6+	4 x 6	13.5	360	54	66	5.5
R2VD10+	4 x 10	15.5	550	75	87	3.2
R2VD16+	4 x 16	17.5	800	100	113	2.1
R0VD25+	4 x 25	22	1250	127	144	1.3
R0VD35+	4 x 35	21	1650	158	174	1
R0VD50+	4 x 50	28	2200	192	206	0.75
R0VD70+	4 x 70	32.5	3200	246	254	0.55
R0VD95+	4 x 95	37	4250	298	301	0.42
R0VD120	4 x 120	41.5	5350	346	343	0.35
R0VD150	4 x 150	45	6450	395	387	0.3
R0VD185	4 x 185	51	8100	450	434	0.26
R0VD240	4 x 240	58	10500	538	501	0.22
5 round copper conductors Three-phase
R2VE1.5+	5G1.5	11	170	23	31	21
R2VE2.5+	5G2.5	12	230	31	41	13
R2VE4+	5G4	13	320	42	53	8.3
R2VE6+	5 x 6	15.5	450	54	66	5.5
R2VE10+	5 x 10	17	670	75	87	3.2
R2VE16+	5 x 16	20	1000	100	113	21
R2VE25	5 x 25	24.5	1540	127	144	1.3
R2VE35	5 x 35	28	2050	158	174	1

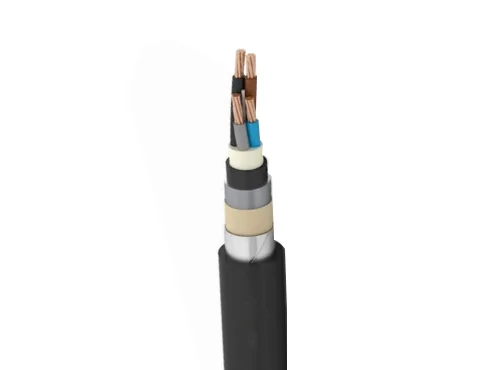

U1000 RVFV

Voltage Rating Uo/U: 0.6/1kV
Temperature Rating: -10°C to +90°C
Conductor:
1.5mm² to 4mm²: Class 1 solid copper conductor
6mm² and above: Class 2 stranded copper conductor
*Class 2 stranded conductor available for these sizes on request
Insulation: XLPE (Cross-Linked Polyethylene)
Inner Sheath: PVC (Polyvinyl Chloride)
Armour: Two steel tapes
Sheath:
PVC (Polyvinyl Chloride)
Core Identification
2 core: Blue Brown
3 core: Black Brown Grey
3 core including earth: Blue Brown Green/Yellow
Sheath Colour
Black
Other colours available on request

U1000 RVFV Application

U1000 RVFV cable can be used for low-voltage industrial installations and connections.
Power supply or connection of fixed substations.
Laying in cable trays on shelves or other supports, and on building risers, either ducted or buried, with mechanical protection.

U1000 RVFV Cable Specification

Reference	Cross-section (mm²)	Approx. outside diameter (mm)	Approx. mass (Kg/Km)	Permissible current in amperes (1)		Voltage drop V/A/Km cosØ=0.8
Reference	Cross-section (mm²)	Approx. outside diameter (mm)	Approx. mass (Kg/Km)	Open air 30°C	In soil 20°C	Voltage drop V/A/Km cosØ=0.8
Single phase
RVFVB1.5+	2 x 1.5	7	100	26	37	25
RVFVB2.5+	1 x 2.5	7.5	130	36	48	15
RVFVB4+	1 x 4	8.5	180	49	63	9.6
RVFVB6+	1 x 6	14	360	63	80	6.3
RVFVB10+	1 x 10	16	480	86	104	3.8
RVFVB16+	1 x 16	18	680	115	136	2.4
RVFVB25+	1 x 25	22	980	149	173	1.6
RVFVB35+	1 x 35	24	1250	185	208	1.2
Three-phase
RVFVC1.5+	3G1.5	7.5	120	23	31	21
RVFVC2.5+	3G25	8	160	31	41	13
RVFVC4+	3G4	9.5	230	42	53	8.3
RVFVC6+	3 x 6	15	450	54	66	5.5
RVFVC10+	3 x 10	17	600	75	87	3.3
RVFVC16+	3 x 16	19	820	100	113	2.1
RVFVC25+	3 x 25	23	1200	127	144	1.3
RVFVC35+	3 x 35	25	1600	158	174	1
RVFVC50+	3 x 50	28	2000	192	206	0.77
RVFVC70+	3 x 70	33	2800	246	254	0.55
RVFVC95+	3 x 95	38	4100	298	301	0.42
RVFVC120+	3 x 120	42	5000	245	343	0.35
RVFVC150+	3 x 150	46	6000	399	387	0.3
RVFVC185+	3 x 185	51	7400	456	434	0.26
RVFVC240	3 x 240	57	9500	598	501	0.2
3 round copper conductors + Neutral Three-phase
RVFVC3516	3 x 35+16	26	1710	158	174	1
RVFVC3525	3 x 35+25	27	1850	158	174	1
RVFVC5025	3 x50+25	30	2250	192	206	0.77
RVFVC5035+	3 x 50+35	31	2400	192	206	0.77
RVFVC7035+	3 x 70+35	34.5	3200	246	254	0.55
RVFVC7050+	3 x 70+50	35.5	3300	246	254	0.55
RVFVC9550+	3 x 95+50	40	4550	298	301	0.43
RVFVC12070+	3 x 120+70	45	5650	346	343	0.35
RVFVC15070+	3 x 150+70	48	6700	399	387	0.3
RVFVC18570+	3 x 185+70	52	8000	456	434	0.26
RVFVC18595+	3 x 185+95	53	8250	456	434	0.26
RVFVC24095+	3 x 240+95	59	10200	538	501	0.22
4 conductors + round copper neutral Three-phase
RVFVD1.5+	4G1.5	8	150	23	31	21
RVFVD2.5+	4G2.5	9	190	31	41	13
RVFVD4+	4G4	10	270	42	53	8.3
RVFVD6+	4 x 6	16	510	54	66	5.5
RVFVD10+	4 x 10	18	720	75	87	3.3
RVFVD16+	4 x 16	21	1000	100	113	2.1
RVFVD25+	4 x 25	25	1500	127	144	1.3
RVFVD35+	4 x 35	28	2000	158	174	1
RVFVD50+	4 x 50	31	2500	192	206	0.77
RVFVD70+	4 x 70	38	3900	246	254	0.55
RVFVD95+	4 x 95	42	5100	298	301	0.43
RVFVD120+	4 x 120	47	6300	346	343	0.35
RVFVD150+	4 x 150	51	7600	395	387	0.3
RVFVD185+	4 x 185	56.5	9400	456	434	0.26
RVFVD240+	4 x 240	63	12000	538	501	0.22
5 round copper conductors Three-phase
RVFVE1.5+	5G 1.5	9	170	23	31	21
RVFVE2.5+	5G 2.5	10	230	31	41	13
RVFVE4+	5G 4	11	320	42	53	8.3
RVFVE6+	5 x 6	18	620	54	66	5.5
RVFVE10+	5 x 10	20	900	75	87	3.3
RVFVE16+	5 x 16	22	1250	100	133	2.1
RVFVE25+	5 x 25	27	1850	127	144	1.2

0.6 / 1 kV U-1000 R2V/XV/RV Cable

Conductor: Copper
Insulation: XLPE
Bedding: PVC
Sheath: PVC
Core Identification:
1 core: Black
2 core: Blue Brown
3 core: Blue Brown Black (1.5mm2 and 2.5mm2 only)
3 core: Brown Black Grey
3 core including earth: Brown Blue Green/Yellow
4 core: Blue Brown Black Grey
4 core including earth: Blue Brown Black Green/Yellow
5 core: Blue Brown Black Grey Black
5 core including earth: Blue Brown Black Grey Green/Yellow
7 core and higher: Black cores with White numbers +Green/Yellow
Sheath Colour: Black

0.6 / 1 kV U-1000 R2V/XV/RV Cable Specification

Single core
Size Cross-Section in mm2	Perm. Current rating open air A	Perm. Current rating burried A	Voltage drop, 3 conductors V/A.km	Max. outer diameter mm	Nominal overall cable weight kg/km
1.5	24	34	21.5	6.4	50
2.5	33	46	13.2	7	50
4	45	59	8.3	7.6	80
6	58	74	5.6	8.2	100
10	80	101	3.3	9.2	145
16	107	128	2.1	10.5	205
25	138	144	1.4	10.5	290
35	169	174	1	11.5	390
50	207	206	0.78	12.6	510
70	268	254	0.56	14.7	720
95	328	301	0.43	16.3	970
120	382	343	0.36	17.8	1210
150	441	387	0.31	20.2	1480
185	506	434	0.26	22.1	1835
240	599	501	0.22	24.9	2540
300	693	565	0.19	27.7	2945
400	825	662	0.17	31.6	2860
500	946	750	0.15	35.5	4890
Two cores
Size Cross-Section in mm2	Perm. Current rating open air A	Perm. Current rating burried A	Voltage drop, 3 conductors V/A.km	Max. outer diameter mm	Nominal overall cable weight kg/km
1.5	24.8	10.5	24	34	130
2.5	14.8	11.5	33	46	170
4	9.2	13	45	59	220
6	6.2	14	58	74	290
10	3.7	16	80	101	400
16	2.4	18.5	107	128	550
25	1.6	22	142	162	865
35	1.15	22.4	185	208	1145
50		24.2	225	247	1435
Three cores
Size Cross-Section in mm2	Perm. Current rating open air A	Perm. Current rating burried A	Voltage drop, 3 conductors V/A.km	Max. outer diameter mm	Nominal overall cable weight kg/km
1.5	21.4	11	22	29	145
2.5	13.2	12.5	30	40	190
4	8.2	13.5	40	51	250
6	5.5	15	52	64	340
10	3.3	17	71	88	485
16	2.1	16.5	96	111	690
25	1.37	23.5	127	144	1080
35	1	26	158	174	1435
50	0.76	29	192	206	1845
70	0.55	34	246	254	2560
95	0.42	38.5	298	301	3470
120	0.35	42.5	346	343	4410
150	0.3	47.5	395	387	5330
185	0.25	53	450	434	6570
240	0.19	59.5	538	501	8460
Three cores with smaller neutral conductor
Size Cross-Section in mm2	Perm. Current rating open air A	Perm. Current rating burried A	Voltage drop, 3 conductors V/A.km	Max. outer diameter mm	Nominal overall cable weight kg/km
50	0.78	31.1	35	190	204
70	0.55	35.1	35	242	252
70	0.57	36.2	50	242	252
95	0.44	40.6	50	293	302
120	0.36	45.4	70	339	345
150	0.31	49.5	70	390	386
240	0.23	61.5	95	522	504
Four cores
Size Cross-Section in mm2	Perm. Current rating open air A	Perm. Current rating burried A	Voltage drop, 3 conductors V/A.km	Max. outer diameter mm	Nominal overall cable weight kg/km
1.5	21.5	12	22	26	170
2.5	12.8	13	30	36	220
4	8	14.5	40	46	300
6	5.4	16	52	58	410
10	3.2	18.5	71	79	600
16	2.11	21	96	100	860
25	1.37	25.5	127	141	1340
35	1	28.5	158	174	1780
50	0.76	32.5	192	206	2330
70	0.55	34.5	246	254	3375
95	0.42	42.5	298	301	4345
120	0.35	47.5	346	343	5590
150	0.3	52.5	395	387	6650
185	0.25	59	450	434	8350
Five cores
Size Cross-Section in mm2	Perm. Current rating open air A	Perm. Current rating burried A	Voltage drop, 3 conductors V/A.km	Max. outer diameter mm	Nominal overall cable weight kg/km
1.5	21.5	13	22	26	200
2.5	13.2	14.5	30	36	275
4	8.2	16	30	46	365
6	5.5	17.5	52	58	490
10	3.3	20	71	79	725
16	2.1	23	96	100	1060
25	1.37	28	127	141	1610
35	1	30.5	157	170	2210
50	0.76	34	190	204	2930
70	0.54	43	242	252	4150
95	0.15	47	293	302	5540

U-1000 RGPFV-RH

0.6/1kV Power&control cables
XP C 32-111
With lead cover
Armoured (double steel tape:STA)
Aliphatic and aromatic hydrocarbons resistant
Classification AD8 and AG4

U-1000 RGPFV-RH Applications

These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed. The lead sheath brings an enhanced resistance to aromatics hydrocarbons.

U-1000 RGPFV-RH Specification

Nombre de conducteurs et section Number of cores and size mm2	Epaisseur d’isolement Insulation thickness mm	Epaisseur de la gaine de plomb Lead sheath thickness mm	Armure Armour mm	Epaisseur de la gaine extérieure Outer sheath thickness mm	Diamètre extérieur Outer diameter approx. mm	Poids du câble Weight of cable approx. kg/km
2 x 1,5 RE	0,7	0,9	2 x 0,2	1,4	15,0	605
2 x 2,5 RE	0,7	0,9	2 x 0,2	1,4	15,0	615
2 x 4 RE	0,7	0,9	2 x 0,5	1,5	17,5	855
2 x 6 RM	0,7	1,0	2 x 0,5	1,5	19,5	1050
2 x 10 RM	0,7	1,0	2 x 0,5	1,6	21,0	1245
2 x 16 RM	0,7	1,1	2 x 0,5	1,6	24,0	1600
2 x 25 RM	0,9	1,2	2 x 0,5	1,7	27,0	2150
2 x 35 RM	0,9	1,3	2 x 0,5	1,8	30,0	2680
3 x 1,5 RE	0,7	0,9	2 x 0,2	1,4	15,0	585
3 x 2,5 RE	0,7	0,9	2 x 0,5	1,4	17,0	815
3 x 4 RE	0,7	1,0	2 x 0,5	1,5	18,0	975
3 x 6 RM	0,7	1,0	2 x 0,5	1,5	20,0	1145
3 x 10 RM	0,7	1,0	2 x 0,5	1,6	22,0	1385
3 x 16 RM	0,7	1,1	2 x 0,5	1,7	25,0	1815
3 x 25 RM	0,9	1,2	2 x 0,5	1,8	29,0	2460
3 x 35 RM	0,9	1,3	2 x 0,5	1,9	32,0	3085
3 x 50 RM	1,0	1,4	2 x 0,5	2,0	35,0	3910
3 x 70 RM	1,1	1,5	2 x 0,5	2,1	40,0	5140
3 x 95 RM	1,1	1,6	2 x 0,8	2,3	46,0	6985
3 x120 RM	1,2	1,7	2 x 0,8	2,4	50,0	8410
3 x150 RM	1,4	1,8	2 x 0,8	2,6	55,0	10070
3 x185 RM	1,6	1,9	2 x 0,8	2,7	60,0	12270
3 x240 RM	1,7	2,1	2 x 0,8	2,9	67,0	15315
4 x 1,5 RE	0,7	0,9	2 x 0,5	1,4	16,5	790
4 x 2,5 RE	0,7	1,0	2 x 0,5	1,5	18,0	950
4 x 4 RE	0,7	1,0	2 x 0,5	1,5	19,0	1045
4 x 6 RM	0,7	1,0	2 x 0,5	1,6	22,0	1290
4 x 10 RM	0,7	1,1	2 x 0,5	1,6	24,0	1640
4 x 16 RM	0,7	1,2	2 x 0,5	1,7	27,0	2155
4 x 25 RM	0,9	1,3	2 x 0,5	1,9	31,0	2965
4 x 35 RM	0,9	1,3	2 x 0,5	1,9	34,0	3600
4 x 50 RM	1,0	1,5	2 x 0,5	2,1	38,0	4730
4 x 70 RM	1,1	1,6	2 x 0,8	2,3	45,0	6720
4 x 95 RM	1,1	1,7	2 x 0,8	2,4	50,0	8530
4 x120 RM	1,2	1,8	2 x 0,8	2,6	55,0	10285
4 x150 RM	1,4	1,9	2 x 0,8	2,7	60,0	12365
4 x185 RM	1,6	2,0	2 x 0,8	2,9	66,0	15085
4 x240 RM	1,7	2,1	2 x 0,8	3,0	73,0	18415

U-1000 RGPFV-RH Specification – 2

Nombre de conducteurs et section Number of cores and size mm2	Epaisseur d’isolement Insulation thickness mm	Epaisseur de la gaine de plomb Lead sheath thickness mm	Armure Armour mm	Epaisseur de la gaine extérieure Outer sheath thickness mm	Diamètre extérieur Outer diameter approx. mm	Poids du câble Weight of cable approx. kg/km
5 x 1,5 RE	0,7	1,0	2 x 0,5	1,5	18,0	925
5 x 2,5 RE	0,7	1,0	2 x 0,5	1,5	19,0	1025
5 x 4 RE	0,7	1,0	2 x 0,5	1,6	21,0	1175
5 x 6 RM	0,7	1,1	2 x 0,5	1,6	23,0	1525
5 x 10 RM	0,7	1,1	2 x 0,5	1,7	25,0	1880
5 x 16 RM	0,7	1,2	2 x 0,5	1,8	29,0	2470
5 x 25 RM	0,9	1,3	2 x 0,5	1,9	33,0	3415
5 x 35 RM	0,9	1,4	2 x 0,5	2,0	37,0	4305
5 x 50 RM	1,0	1,5	2 x 0,5	2,2	42,0	5645
5 x 70 RM	1,1	1,6	2 x 0,8	2,5	50,0	7935
5 x 95 RM	1,1	1,7	2 x 0,8	2,6	55,0	10115
5 x120 RM	1,2	1,8	2 x 0,8	2,8	61,0	12370
7 x 1,5 RE	0,7	1,0	2 x 0,5	1,5	19,0	995
7 x 2,5 RE	0,7	1,0	2 x 0,5	1,5	20,0	1145
12 x 1,5 RE	0,7	1,1	2 x 0,5	1,6	22,0	1285
12 x 2,5 RE	0,7	1,1	2 x 0,5	1,7	24,0	1520
19 x ,5 RE	0,7	1,1	2 x 0,5	1,7	25,0	1580
19 x 2,5 RE	0,7	1,2	2 x 0,5	1,8	27,0	1980
24 x 1,5 RE	0,7	1,2	2 x 0,5	1,8	28,0	1955
24 x 2,5 RE	0,7	1,3	2 x 0,5	1,9	31,0	2450
27 x 1,5 RE	0,7	1,3	2 x 0,5	1,9	29,0	2130
27 x 2,5 RE	0,7	1,3	2 x 0,5	1,9	31,0	2565
37 x 1,5 RE	0,7	1,3	2 x 0,5	1,9	31,0	2490
37 x 2,5 RE	0,7	1,4	2 x 0,5	2,1	35,0	3170

U1000 ARVFV

Nominal voltage Uo/U
0.6/1Kv
Conductor
Alu round core class 2 wired
Insulation
PR / XLPE
Inner sheath
PVC
Armor
Double strap steel armor
Sheath
PVC

U1000 ARVFV Application

U1000 arvfv cable is used in power plants, substations, industrial plants, metropolitan networks and other electrical installations.
Applications where protection against severe mechanical damage is required.

U1000 ARVFV Cable Specification

Reference	Cross-section (mm²)	Approx. outside diameter (mm)	Approx. mass (Kg/Km)	Permissible current in amperes (1)		Voltage drop V/A/Km cosØ=0.8
				Open air 30°C	In soil 20°C
2 wired round aluminum conductors Single-phase
ARVFB16	2 x 16	18	490	91	104	4
ARVFB25	1 x 25	22	700	108	133	2.5
ARVFB35	1 x 35	24	850	135	160	2
3 wired round aluminum conductors Three-phase (2)
ARVFC16	3 x 16	19	550	77	87	3.4
ARVFC25	3 x 25	23	770	97	111	2.2
ARVFC35	3 x 35	25	940	120	134	1.6
ARVFC50	3 x 50	28	1200	146	160	1.2
ARVFC70	3 x 70	33	1600	187	197	0.86
ARVFC95	3 x 95	38	2400	227	234	0.64
ARVFC120	3 x 120	42	2800	263	266	0.53
ARVFC150	3 x 150	47	3450	301	302	0.45
ARVFC185	3 x 185	51	4100	347	337	0.38
ARVFVC240	3 x 240	56.5	5000	409	388	0.31
3 aluminum conductors + round wired neutral Three-phase
ARVFC5035	3×50+35	31	1300	146	160	1.2
ARVFC7050	3×70+50	36	1800	187	197	0.86
ARVFC9550	3×95+50	40	2600	227	234	0.64
ARVFC12070	3×120+70	45	3100	263	266	0.53
ARVFC15070	3×150+70	49	3700	304	300	0.45
ARVFC18570	3×185+70	53	4300	347	337	0.38
ARVFC18595	3×185+95	54	4400	347	377	0.38
ARVFC24095	3×240+95	59	5300	409	388	0.31
4 wired round aluminium conductors Three-phase
ARVFD16	4 x 16	21	640	77	87	3.4
ARVFD25	4 x 25	25	900	97	111	2.2
ARVFD35	4 x 35	28	1100	120	134	1.6
ARVFD50	4 x 50	31	1400	146	160	1.2
ARVFD70	4 x 70	38	2300	187	197	0.86
ARVFD95	4 x 95	42	2800	227	234	0.64
ARVFD120	4 x 120	46	3400	263	266	0.53
ARVFD150	4 x 150	51	4050	304	300	0.45
ARVFD185	4 x 185	56	4900	347	337	0.38
ARVFD240	4 x 240	63	6050	409	338	0.31
5 wired round aluminium conductors Three-phase
ARVFE16	5 x 16	23	750	77	87	3.4
ARVFE25	5 x 25	28	1050	97	111	2.2
ARVFE35	5 x 35	30	1300	120	134	1.6
ARVFE50	5 x 50	34	1600	146	160	1.2
