Flat and Round JHS Submersible Waterproof Pump Cable
JHS Submersible Water Pump Cable Application
This Submersible Water Pump Cable is Extra Flexible, High Ampacity, suitable for use within well casings for wiring deep-well submersible water pumps. This product can be equipped with waterproof joint (it can be supplied completely as request).

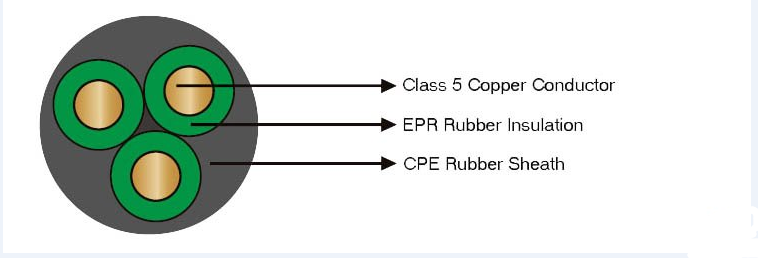

Roud type subermersible pupmp cable structute decsription& JHS Submersible Water Pump Cable

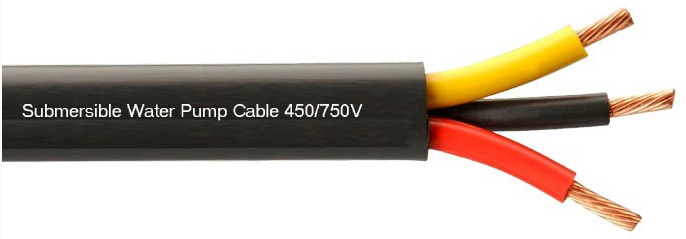

- Voltage: 300/500V, 450/750V, 600/1000V
- Test Voltage: 1.5KV, 2.5KV, 3.5KV and so on.

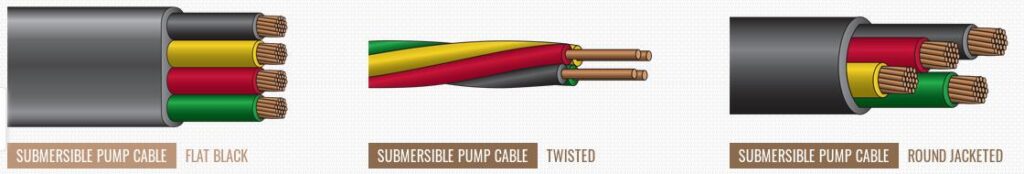

- Type: Flat/Round or twisted
- Conductor Working temperature: 85°C
- Insulation: EPR/PVC/Rubber.
- Ambient temperature: Fixed: -40°C to 90°C; Mobile:-25°C to 90°C
- Flame retardant: VDE 0482-332-1-2/IEC 60332-1 and so on.

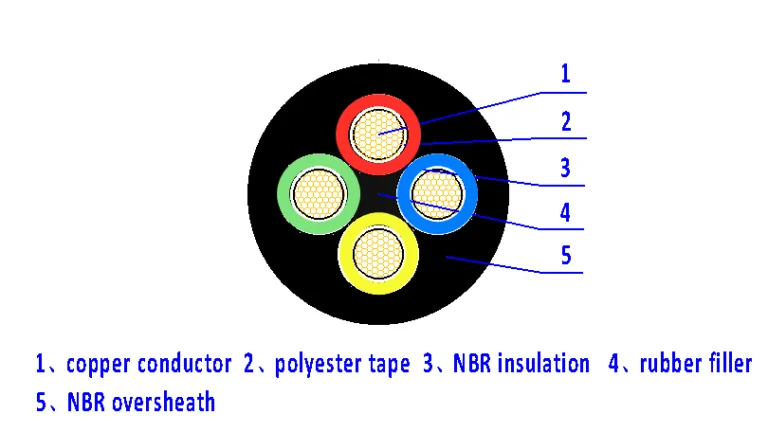

Flat subermersible pupmp cable structute decsription

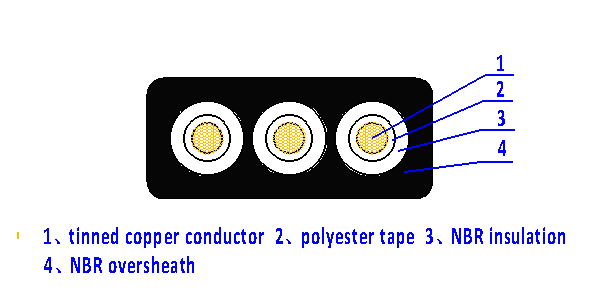

- Conductor: Annealed bare stranded copper conductors

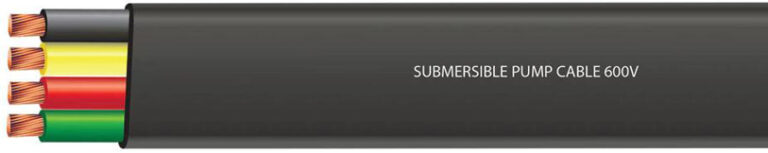

- Insulation: PVC insulated and run parallel with a PVC black jacket to form a 75°C 600 Volt Multi-Conductor.
- Operating temperature range: -40° C to 75° C
– Resistant to acid, abrasion, alkalis, flame, gas, and oil
Flat Jacketed Submersible Pump Cables With Ground
| CONDUCTOR SIZE | NO OF | NOS OF DIA. OF | Ground Conductor Size | CORE DIA. | NOMINAL SHETH THICKNESS |
|---|---|---|---|---|---|
| AWG | CONDUCTOR | WIRE | AWG | MM | MM |
| 14 | 3 | 41×0.254 | 14 | 3.85 | 1.15 |
| 12 | 3 | 65×0.254 | 12 | 4.5 | 1.15 |
| 10 | 3 | 105×0.254 | 10 | 5.3 | 1.15 |
| 8 | 3 | 168×0.254 | 10 | 6.5 | 1.4 |
| 6 | 3 | 226×0.254 | 8 | 8 | 2 |
| 4 | 3 | 420×0.254 | 8 | 10.1 | 2 |
| 2 | 3 | 665×0.254 | 6 | 11.3 | 2.2 |
| 1 | 3 | 817×0.254 | 6 | 13.6 | 2.2 |
| 1/0 | 3 | 1045×0.254 | 6 | 15.6 | 2.2 |
| 2/0 | 3 | 1330×0.254 | 6 | 18 | 2.2 |
JHS subermersible pump cable paramete date
| Conductor | Nominal Core Dia. | Approx. Overall Dimensions of doubble Sheathed Cable |
CCurrent rating at 40 degree | ||
|---|---|---|---|---|---|
| Nominal Area in | Nos. & Dia. of wire | 3 Core | 4 Core | Amps. | |
| Sq. mm. | Nos./mm | mm | mm | mm | |
| 1.5 | 22/0.30 | 3.25 | 10 | 10.8 | 14 |
| 2.5 | 36/0.30 | 3.84 | 11 | 12.5 | 18 |
| 4 | 56/0.30 | 4.5 | 13 | 14.1 | 26 |
| 6 | 84/0.30 | 5.3 | 14.6 | 16 | 31 |
| 10 | 140/0.30 | 6.5 | 18 | 20.35 | 42 |
| 16 | 224/0.30 | 8 | 21.2 | 23.4 | 57 |
| 25 | 350/0.30 | 10.1 | 26 | 28.8 | 72 |
| 35 | 490/0.30 | 11.3 | 28.3 | 31.5 | 90 |
| 50 | 703/0.30 | 13.6 | 33.5 | 37.3 | 115 |
| 70 | 988/0.30 | 15.3 | 37.8 | 42.2 | 143 |
| 95 | 1349/0.30 | 18 | 43.5 | 48.8 | 165 |
