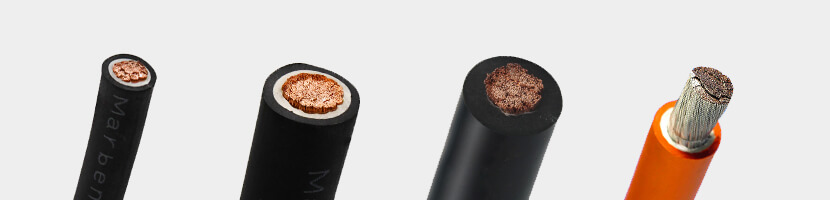

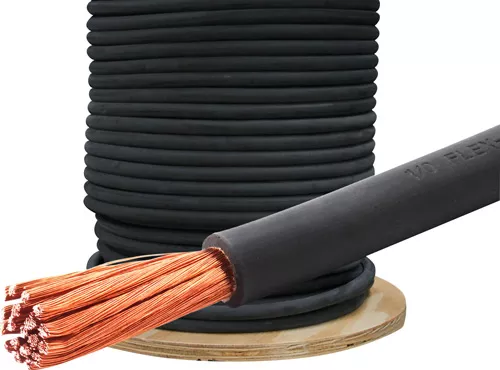

10-120mm2 Flexible PVC/Rubber H01N1-D Welding & Battery Cable
Welding cable is a type of electrical cable specifically designed for use in welding applications. It is used to connect the welding machine or power source to the electrode holder or welding gun. Welding cables are flexible and durable to withstand the rugged conditions typically encountered in welding environments.

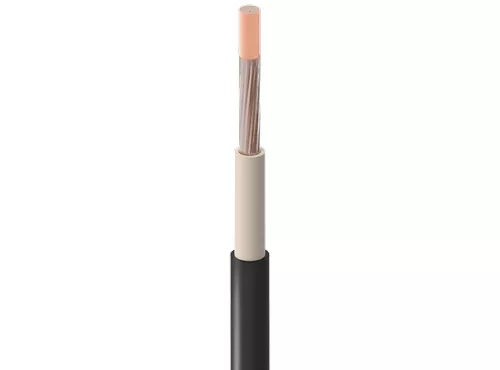

Welding & Battery Cable Construction
- Temperature Rating
- Flexed: -20ºC to +85°C
- Conductor
- Flexible bare annealed copper wire or tinned copper wire
- Separator
- PET (Polyester Tape)
- Insulation
- PVC or Rubber Material or EPR
- Sheath
- Natural rubber, Horoprene rubber or other syntheitic rubber,PVC or or CSP
- No.Cross-section

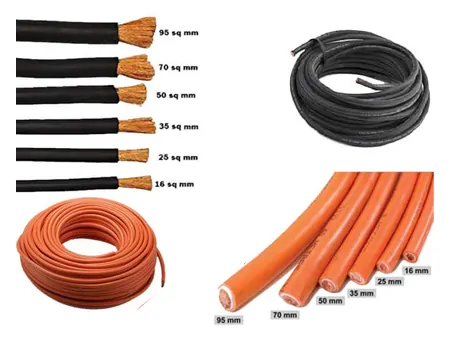

- 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120m2, 150mm2, 185mm2 ,240mm2
- AWG: 6awg, 4awg, 2awg, 1awg, 1/0awg, 2/0awg, 3/0awg, 4/0awg, 250awg, 350awg, 500awg.
- Gauge: 0 gauge, 1 gauge, 2 gauge, 4 gauge, 6 gauge, 8 gauge

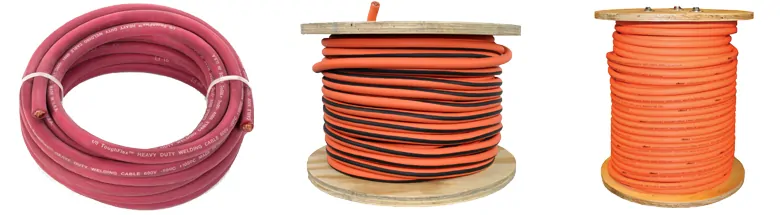

- Sheath Color
- Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
- Feature
- Resist heat, oil and chemicals, conductivity and flexibility.
- Standard
- IEC60245, ASTM,VDE,DIN etc.
| Model | Name | Main applications | Working temperature of core ≤0C |
| 60245-81(YH) | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
| 60245-82(YHF) | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
Application of H01n2 d welding cable
These cables are used as a connection to welding robots in the automotive industry, transport adn conveyor system shipyards and for manually / automatically operated lines and spot welding.
The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols
H01N2-D Welding Cable
Voltage Rating : 100V
Temperature Rating: Fixed: -40°C to +85°C ; Flexed: -20°C to +85°C
Minimum Bending Radius: Flexed: 6 x overall diameter
Conductor: Generally to Class 6 flexible copper conductor
Separator: PET (Polyester Tape)
Sheath: Rubber compound
Sheath Colour: Black Red
STANDARDS:
EN 50525-2-81, EN 60228, HD 22.6, VDE 0282-6,
BS 638 Part 4
Flame Retardant according to IEC/EN 60332-1-2
H01N2-D Welding Cable Parameter to ASTM Standard
| (AWG) | Nominal stranding | Nominal overall diameter | Max.conductor resistance at 20℃(Ω/km) | ||
| AWG | mm | inch | mm | ||
| 6 | 259/30 | 259/0.254 | 0.43 | 10.92 | 1.33 |
| 4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 0.84 |
| 2 | 646/30 | 646/0.254 | 0.54 | 13.72 | 0.53 |
| 1 | 836/30 | 836/0.254 | 0.58 | 14.73 | 0.42 |
| 1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 0.33 |
| 2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 0.26 |
| 3/0 | 1672/30 | 1672/0.254 | 0.72 | 18.29 | 0.21 |
| 4/0 | 2066/30 | 2066/0.254 | 0.78 | 19.81 | 0.17 |

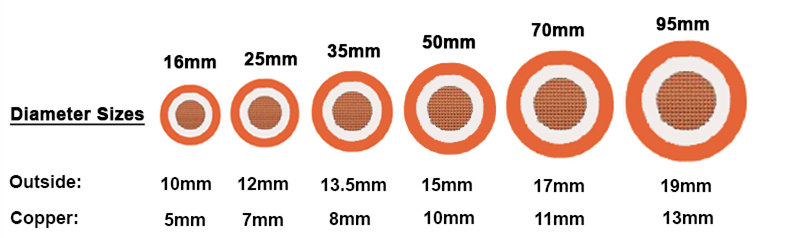

| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | mm | kg/km | |
| 1 | 10 | 2 | 9 | 146 |
| 1 | 16 | 2 | 10 | 204 |
| 1 | 25 | 2 | 11.5 | 290 |
| 1 | 35 | 2 | 12.5 | 384 |
| 1 | 50 | 2.2 | 14.5 | 535 |
| 1 | 70 | 2.4 | 16.5 | 716 |
| 1 | 95 | 2.6 | 18.5 | 943 |
| 1 | 120 | 2.8 | 20.5 | 1235 |
| 1 | 150 | 3 | 23 | 1556 |
